BELT-TUMBLER TYPE ABRASIVE BLASTING MACHINE

BELT-TUMBLER TYPE SUCTION-BASED ABRASIVE BLASTING MACHINE

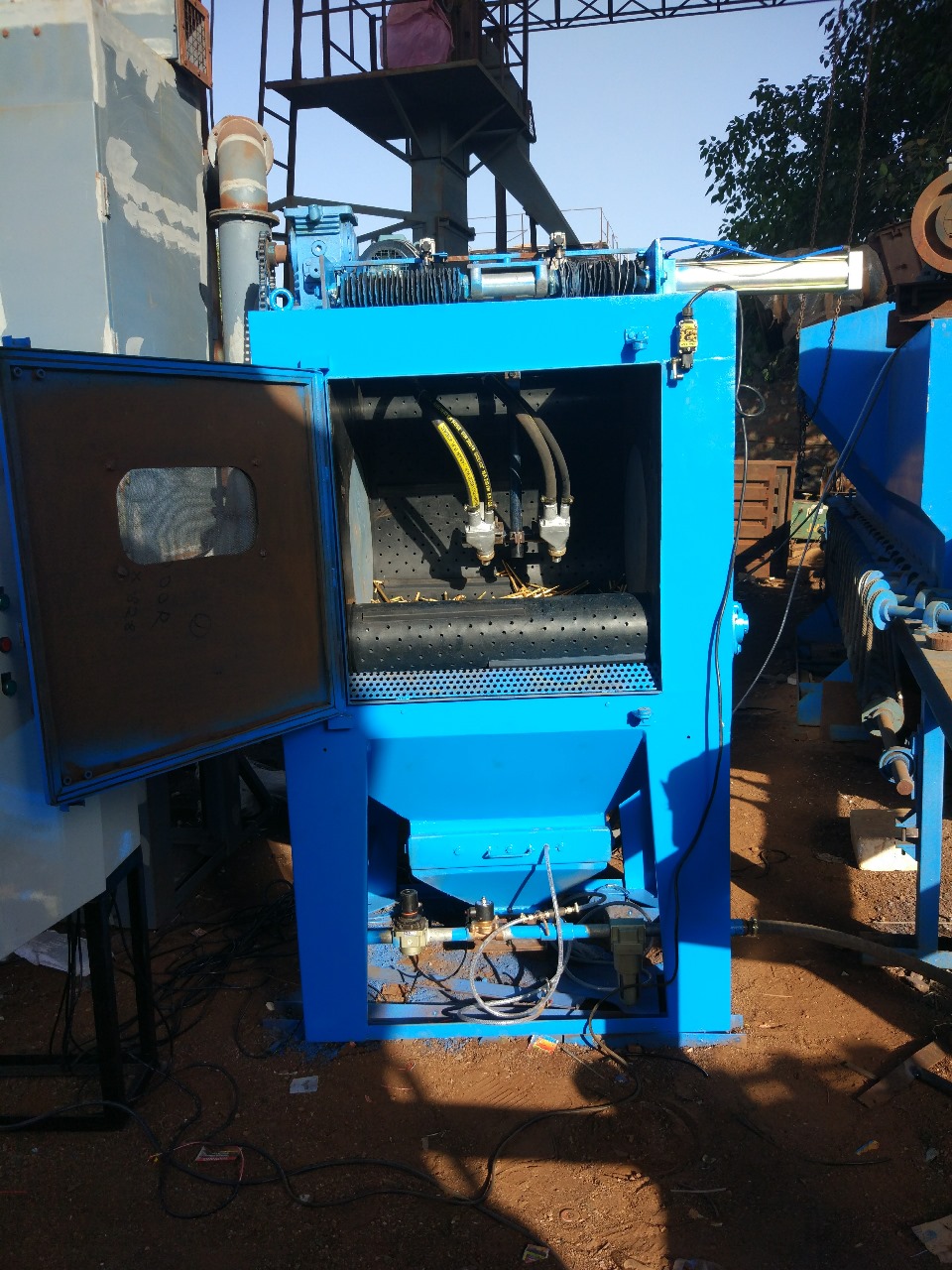

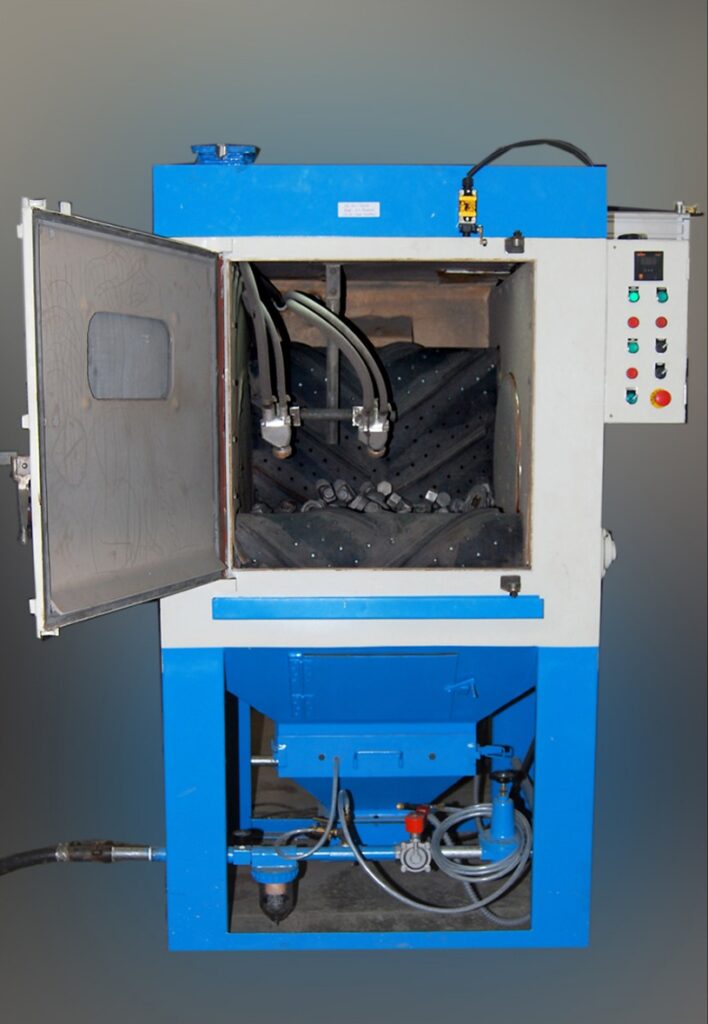

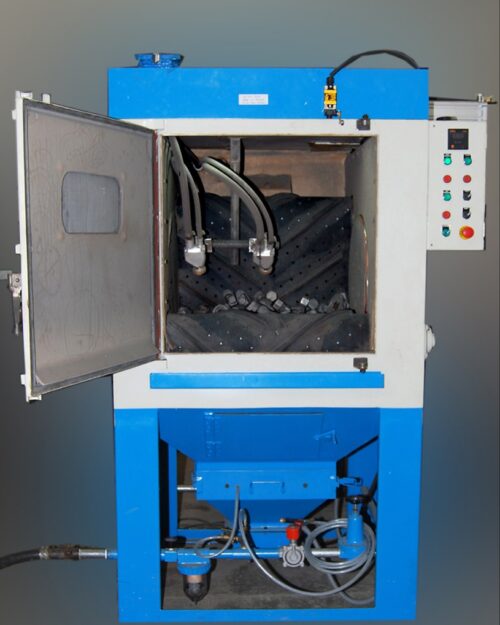

The Belt Tumbler Type Suction-Based Abrasive Blasting Machine is a highly efficient, fully enclosed system engineered for the automatic surface treatment of small and medium-sized parts in batches. It is particularly suited for components that are durable enough to withstand tumbling but require consistent and uniform abrasive coverage.

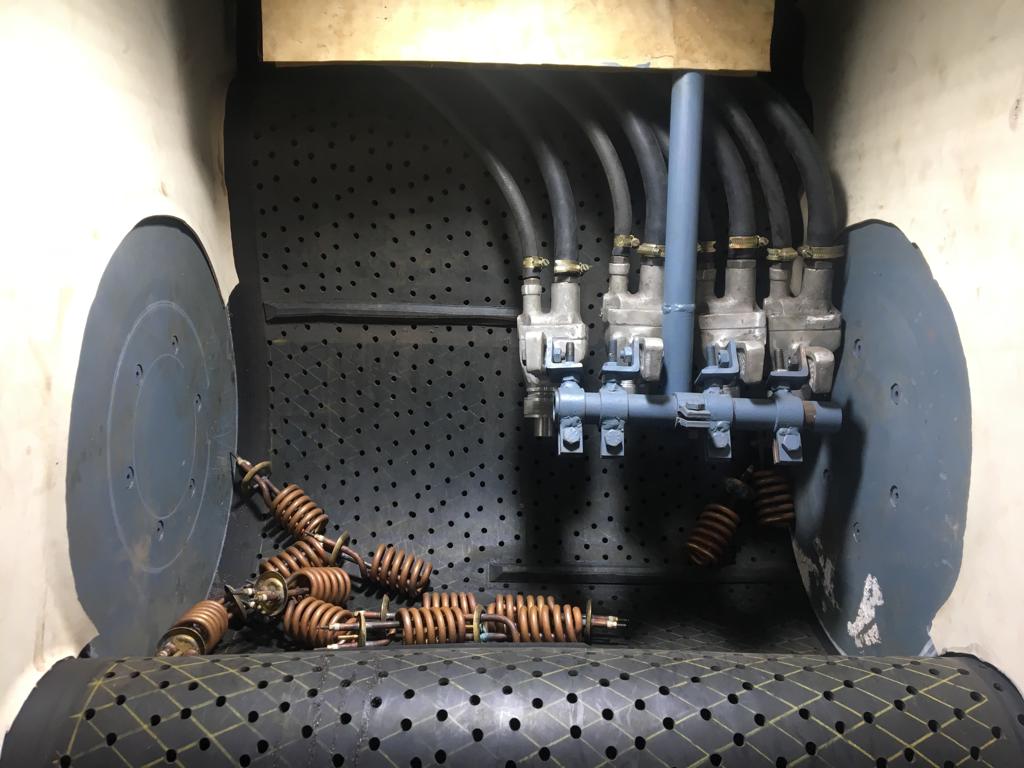

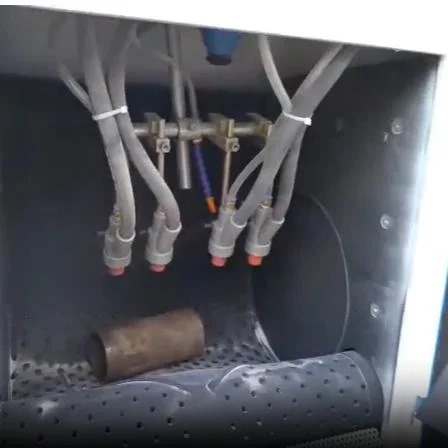

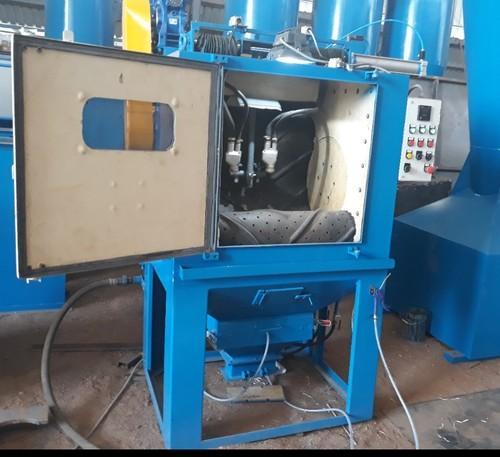

At the heart of the system is a perforated rubber or steel belt that gently rotates the parts, allowing them to tumble over each other. During this motion, a powerful suction-based blasting gun directs abrasive media onto the moving surfaces. This action ensures 360-degree cleaning, deburring, descaling, or surface roughening, making the machine ideal for heat-treated, forged, cast, or machined components.

With a compact design and low power consumption, this machine is an excellent fit for workshops, foundries, tool rooms, and production units looking to enhance finishing quality while optimizing labor and space.

Key Features

Rotating Tumbler Belt Mechanism: The belt tumbler ensures continuous agitation of the components during blasting, providing thorough surface coverage for every part in the batch.
Gun Reciprocation System for Enhanced Blasting Efficiency: A reciprocating mechanism can be integrated to move the suction blast gun(s) in a controlled linear motion, ensuring more uniform abrasive coverage across all tumbling parts. This feature is especially beneficial for dense or irregularly shaped batches, reducing cycle time while improving surface consistency.
Suction-Based Abrasive Delivery System: Utilizes the venturi principle to draw and propel abrasive media with consistent flow, suitable for lighter and medium-duty blasting applications.
Durable Construction with Wear Protection: The blasting chamber is reinforced with wear-resistant materials like manganese steel liners or heavy-duty rubber to ensure long operational life and minimal maintenance.
Automatic Timer-Based Operation: Programmable timers control blast cycle durations, allowing operators to set the machine and leave it to complete the operation automatically.
Integrated Media Reclaimer and Dust Collector: A built-in separation system collects used abrasive, cleans it of dust and debris, and recycles it for reuse—ensuring clean operation and reduced media wastage.
Low Maintenance, Noise-Controlled Design: Simplified mechanical components reduce maintenance downtime, while the enclosed system helps maintain a quieter and safer workplace.

Finishing Process and Applications:

The operation begins by loading a batch of components into the belt tumbler drum. As the machine starts, the belt slowly rotates, causing the parts to tumble and expose all surfaces uniformly. Simultaneously, one or more suction-based blast guns deliver a steady stream of abrasive media onto the moving parts. This action removes contaminants, oxides, burrs, or surface imperfections from all sides. The used abrasive then falls through the perforated belt into a collection system, where it is filtered and returned to the hopper for reuse. Once the cycle completes, the machine stops automatically, and the parts are ready for unloading.

Automotive and Engineering Components: Ideal for cleaning bolts, nuts, brackets, washers, and fasteners used in vehicles and mechanical assemblies.
Foundries and Casting Units: Suitable for removing casting sand, scale, or flash from small aluminum, brass, or zinc castings.
Tool and Hardware Manufacturing: Used to finish hand tools, pliers, spanners, metal hinges, springs, and lock components.
Heat-Treatment Plants: Effective for descaling and post-treatment cleaning of oxidized metal parts without damaging surface geometry.
General Fabrication and Sheet Metal: Perfect for surface preparation of stamped, punched, or laser-cut metal components before coating or assembly.

Benefits

Uniform Surface Coverage: Continuous part movement within the rotating drum ensures all sides are exposed to abrasive, achieving a consistent finish across the entire batch.
Efficient Batch Processing: Designed for medium to high-volume operations, reducing handling time and increasing productivity per cycle.
Cost-Effective Operation: The suction blasting system consumes less power and abrasive compared to pressure-based systems, making it ideal for economical surface treatment.
Minimal Manual Intervention: Once parts are loaded and the cycle is set, the machine runs automatically, allowing labor to focus on other tasks.

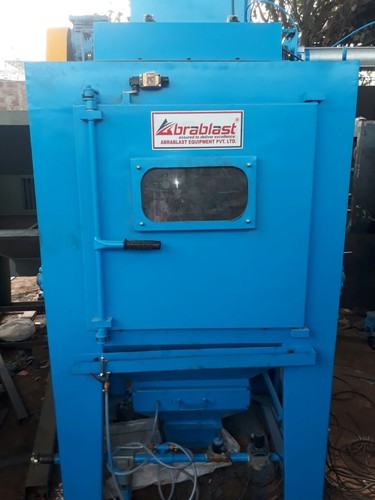

Compact and Safe Design: The enclosed cabinet minimizes noise, dust emissions, and workplace hazards, making it suitable for modern shopfloor environments.

Why Choose Our Cabinet Type Abrasive Blasting Machine

At Abrablast, we deliver surface preparation solutions that are tailored to your operational needs. Our Belt Tumbler Type Suction-Based Blasting Machines are built with precision engineering, proven industrial components, and robust design practices to ensure reliable long-term performance. With deep expertise in abrasive blasting and in-house customization capabilities, we ensure that each machine not only meets your technical requirements but also enhances your production workflow. Backed by responsive service, expert consultation, and after-sales support, Abrablast is a name you can trust in surface treatment technology.

Customization and Technical Support

At Abrablast, we understand that no two production environments are the same. That’s why we offer tailored engineering and a wide range of customization options and add-ons to ensure your Belt Tumbler Type Suction-Based Blasting Machine perfectly aligns with your operational needs, material types, and process goals. From drum design to automation, and from media handling to integrated controls, every aspect of the machine can be optimized for performance, durability, and operator convenience.

Available Customizations Include:

Tumbler Drum Sizes and Load Capacities
Machines can be supplied with various drum diameters and belt lengths to handle different batch sizes and part weights—ranging from 25 kg to 200 kg or more—based on your specific production throughput.
Belt Material Options

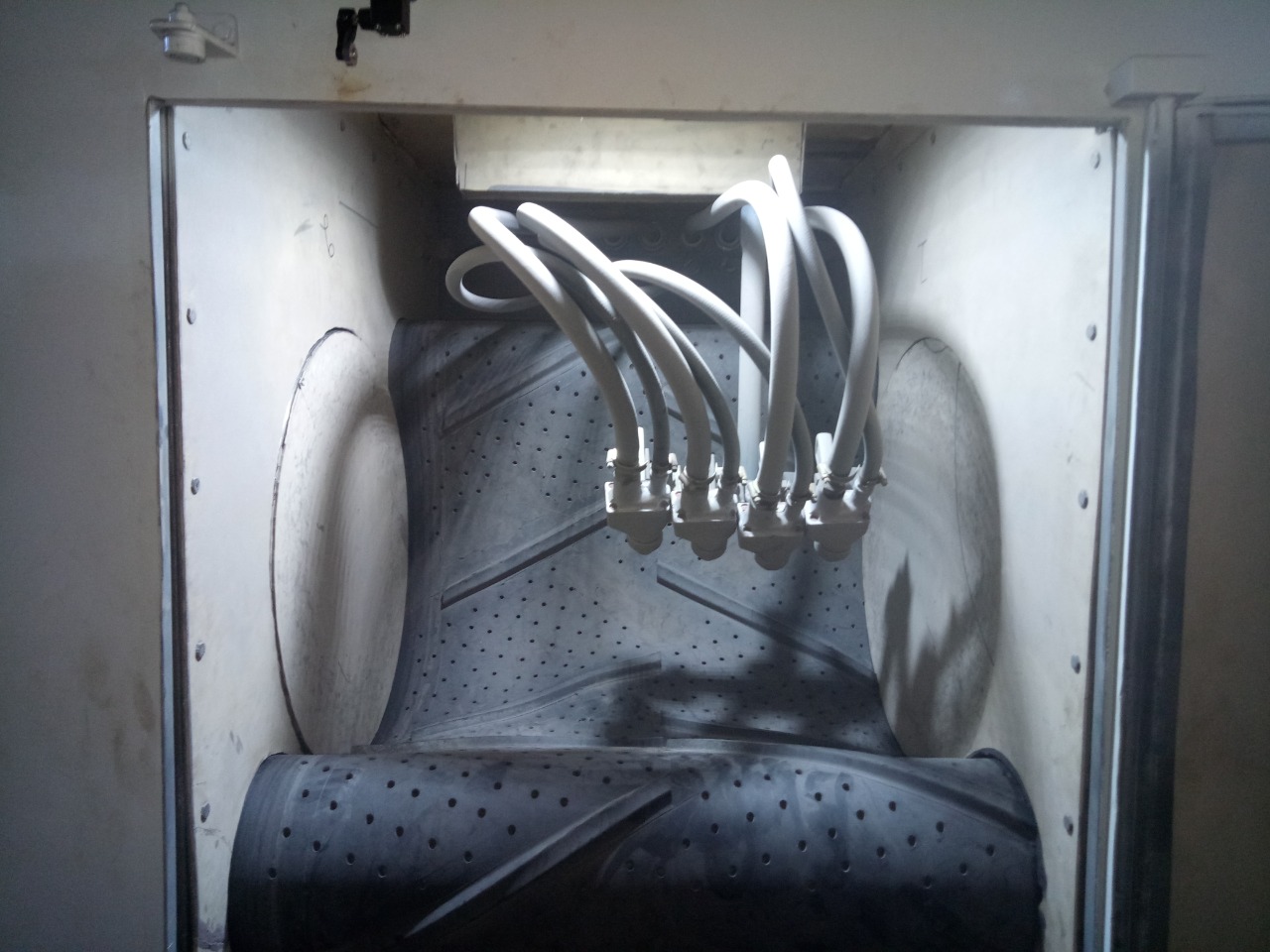

Available in perforated belt conveyors for standard tumbling applications or perforated belt conveyors with integrated ribs for enhanced part agitation and controlled movement—ideal for complex shapes or where effective turning and separation of parts during blasting is critical.
Single or Dual Gun Configuration

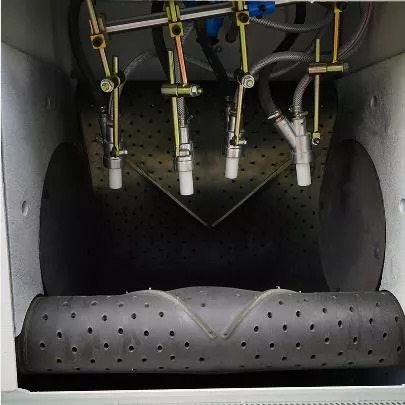

Depending on blast intensity requirements and cycle time targets, machines can be equipped with one or two suction blast guns, optimally positioned for uniform coverage of tumbling parts.
Media Compatibility and Flow Adjustment
The system can be configured to support a wide range of abrasive media—such as glass beads, aluminum oxide, garnet, plastic media, or walnut shell—along with adjustable media flow valves for precise control.
PLC-Based Automation with HMI Interface
Upgrade to advanced automation with a programmable logic controller (PLC) and touch-screen HMI for setting cycle times, maintenance alerts, fault diagnostics, and recipe-based process control.
Dust Collection Systems
Offered with a range of integrated or external dust collectors including pleated cartridge filters with automatic pulse-jet cleaning or traditional bag-type filters, sized according to dust load and airflow requirements.
Magnetic Separator Integration
For ferrous part processing, a magnetic separator unit can be added to remove metal dust from reusable abrasive, maintaining media quality and protecting components from contamination.
Noise & Safety Enclosures
Optional sound-insulated panels, LED-lit observation windows, safety interlocks, and emergency shut-off switches can be provided to enhance workplace safety and compliance with industrial regulations.
Automatic Loading and Unloading Systems
To support high-volume or operator-free production lines, machines can be equipped with hydraulic tilting loaders, vibratory feeders, or conveyor-based unloading chutes.
Export-Ready Models with International Compliance
Machines can be built to conform to CE, UL, or ISO safety standards, complete with technical documentation, material test certificates, and wiring diagrams required for overseas installations.
