DRY END-DRAFT TYPE PAINT SPRAY BOOTH

DRY END-DRAFT TYPE PAINT SPRAY BOOTH SYSTEM

The Dry End-Draft Type Paint Spray Booth System is a reliable and efficient solution engineered to deliver clean, controlled, and safe painting environments. Utilizing a rear-mounted dry filtration system, this booth captures paint overspray and airborne particles by drawing air horizontally from the operator’s working area toward the rear extraction zone. Its compact design, ease of maintenance, and compliance with environmental and safety norms make it ideal for a wide range of industrial painting applications. Whether it’s automotive components, fabricated metal parts, or furniture finishing, this booth ensures precision coating results in a dust-free, ventilated workspace.

Key Features:

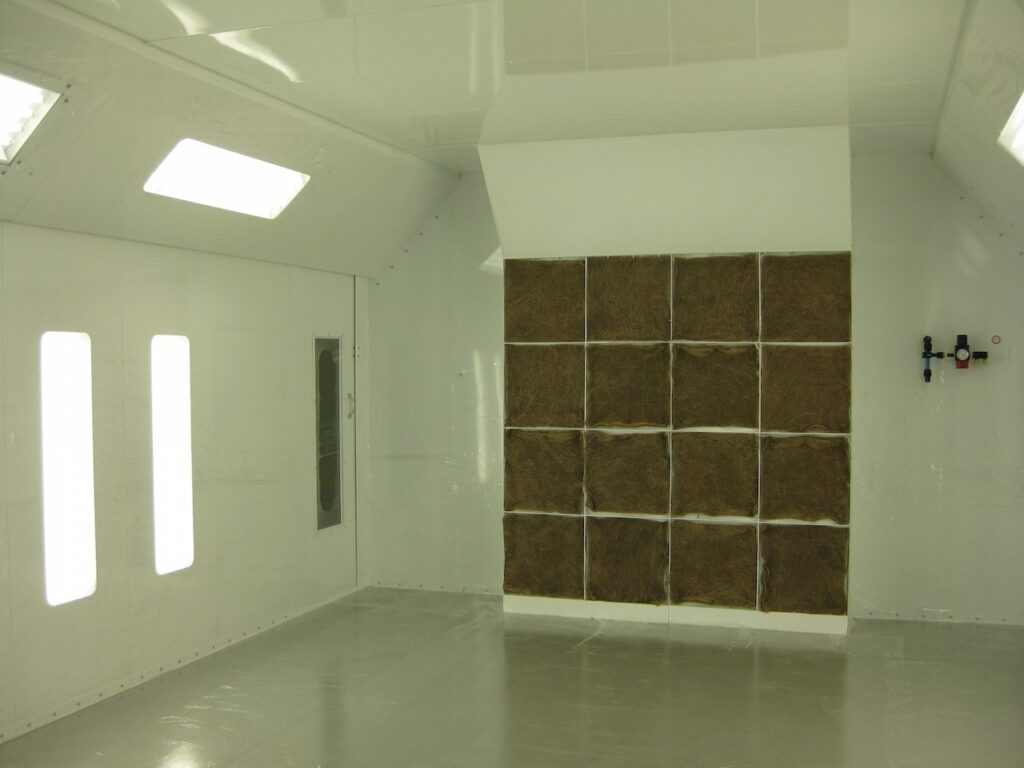

Rear-Mounted Dry Filtration System: Overspray is pulled through multi-stage dry filters located at the rear wall, effectively removing paint particles from the airflow and maintaining clean air in the booth.
Efficient End-to-End Airflow: Air enters from the front and flows straight toward the rear extraction chamber, keeping the operator in a cleaner breathing zone and directing contaminants away from the painted surface.
Heavy-Duty Exhaust Fan: High-performance exhaust systems provide uniform airflow, improve filtration efficiency, and ensure constant negative pressure to maintain booth integrity.
Compact, Modular Design: End-draft booths are ideal for space-constrained areas while still accommodating various job sizes. Modular construction allows for scalability and easy integration into existing workshop layouts.

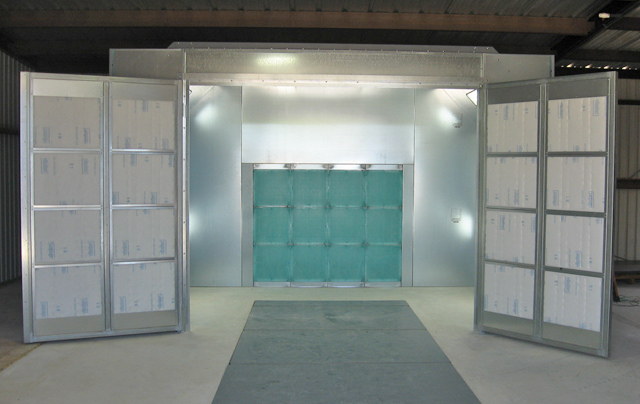

Quick-Change Filter Access: Rear filter bank is easily accessible for fast and tool-less filter replacements, reducing downtime and simplifying maintenance.
Sturdy, Long-Lasting Build: Constructed from Mild steel panels or Puff Insulated Sandwich Panels for excellent resistance to paint fumes, solvent exposure, and general wear in demanding environments.

Finishing Process and Applications:

The Dry End-Draft Type Paint Spray Booth operates by creating a straight-line airflow from the open front (or filtered air intake section) to the rear-mounted exhaust filtration system. During painting, air carries overspray, dust, and fumes directly away from the operator and the painted object, into a filtration wall lined with multi-stage dry filters. These filters capture the airborne contaminants, while the cleaned air is safely expelled through an exhaust duct via a powerful axial or centrifugal fan. Filter media can be easily changed when saturated. This efficient end-to-end flow ensures a clean working atmosphere, superior paint finish, and simplified maintenance without the need for water-based sludge handling.

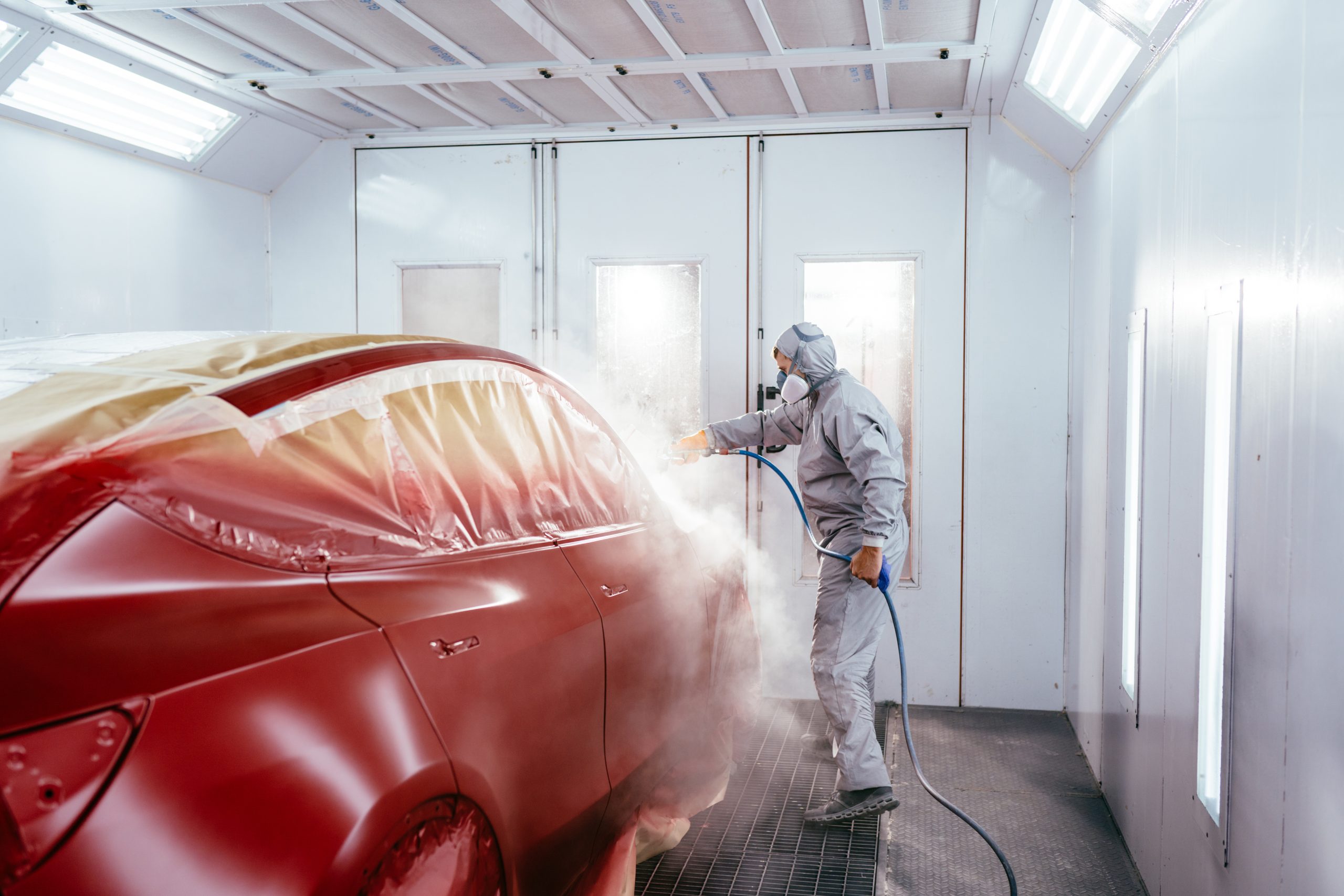

Automotive Painting: Perfect for automotive shops, the system provides a controlled environment for painting vehicles and parts, ensuring a flawless finish.
Aerospace Components: Suitable for the painting and finishing of aerospace components that require precision and high-quality surface treatments.
Furniture Finishing: Ideal for woodworking shops looking to apply finishes to furniture and cabinetry in a clean environment.
Industrial Equipment: Used for painting industrial machinery and equipment, ensuring consistent and high-quality results.

Benefits

Direct Contaminant Removal: Cross-draft airflow (rear end of the booth) ensures overspray is quickly removed from the painting zone.
Improved Finish Quality: Clean airflow reduces airborne particles near the part surface, resulting in smoother, defect-free finishes.
Low Utility Cost: No water or sludge handling needed; dry filters reduce recurring costs and simplify booth management.
Safe & Environmentally Friendly: Compliant with air quality and occupational safety standards; reduces VOC and particulate emissions.

Why Choose Our Dry End-Draft Paint Booth Systems?

Engineered for Real Industrial Needs: Our booths are developed using proven airflow modeling, practical industry feedback, and years of coating system experience—ensuring real-world reliability and efficiency.
Fully Customizable Design: From structural dimensions to airflow management and filtration choices, we build systems that align perfectly with your space and process needs.
Superior Filtration & Air Management: Our rear-draft systems ensure consistent airflow direction and effective particulate capture, resulting in cleaner finishes and healthier workspaces.
Built to Endure: Heavy-duty panels, corrosion-resistant parts, and easy-access maintenance zones make these booths ideal for continuous, high-load operations.
End-to-End Project Support: We manage everything from planning to commissioning and post-installation service—so you can focus on production while we ensure uptime.
Safety and Environmental Compliance: Our booths meet all relevant CPCB/SPCB norms and are available with optional fire-retardant and flameproof configurations for added peace of mind.

Customization & Technical Options

Our Dry End-Draft Booths can be tailored to meet your production workflow, space constraints, and compliance requirements. We provide full customization for filtration setup, structural design, job handling, and safety features.

Job Handling & Movement Options

Manual roller beds or wheeled trolleys
Overhead rail with suspended carriers
Hydraulic or pneumatic lift tables
Motorized conveyors for continuous process lines

Access & Door Options

Hinged double-leaf or single-leaf doors
Space-saving sliding doors
Vertical lift or sectional rolling shutters

Filtration & Exhaust System Customization

Multi-stage dry filters with pre-filter and fine filter combinations
HEPA or activated carbon filters for advanced applications
Extended rear plenum chamber for high-volume airflow
Custom duct routing and silencers for noise control

Material & Electrical Configuration

Puff Insulated Sandwich Panels or Mild Steel Fabricated Panels.
Flameproof fans and lighting fixtures (optional)
LED-based lighting layouts with shadow-free illumination
Transparent view windows for operator visibility

Technical Support & After-Sales Service

Abrablast offers complete end-to-end support to ensure your booth operates efficiently throughout its life cycle:

Supervised installation & commissioning
On-site operator training and safety briefings
Annual Maintenance Contracts (AMCs) and periodic service plans
Stocked spare parts with priority dispatch
Remote support and on-call service engineers
Retrofitting and upgrades for legacy systems
