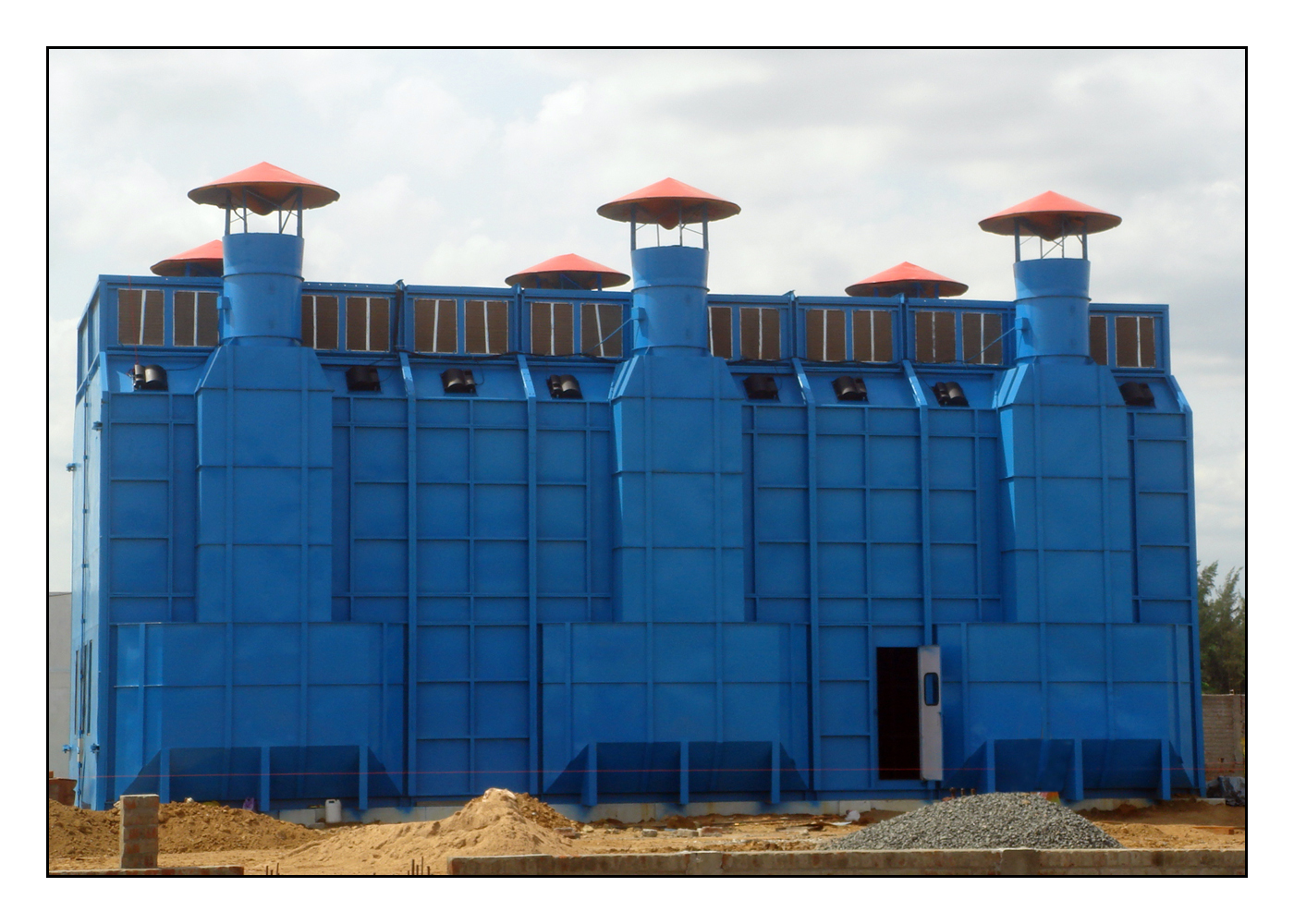

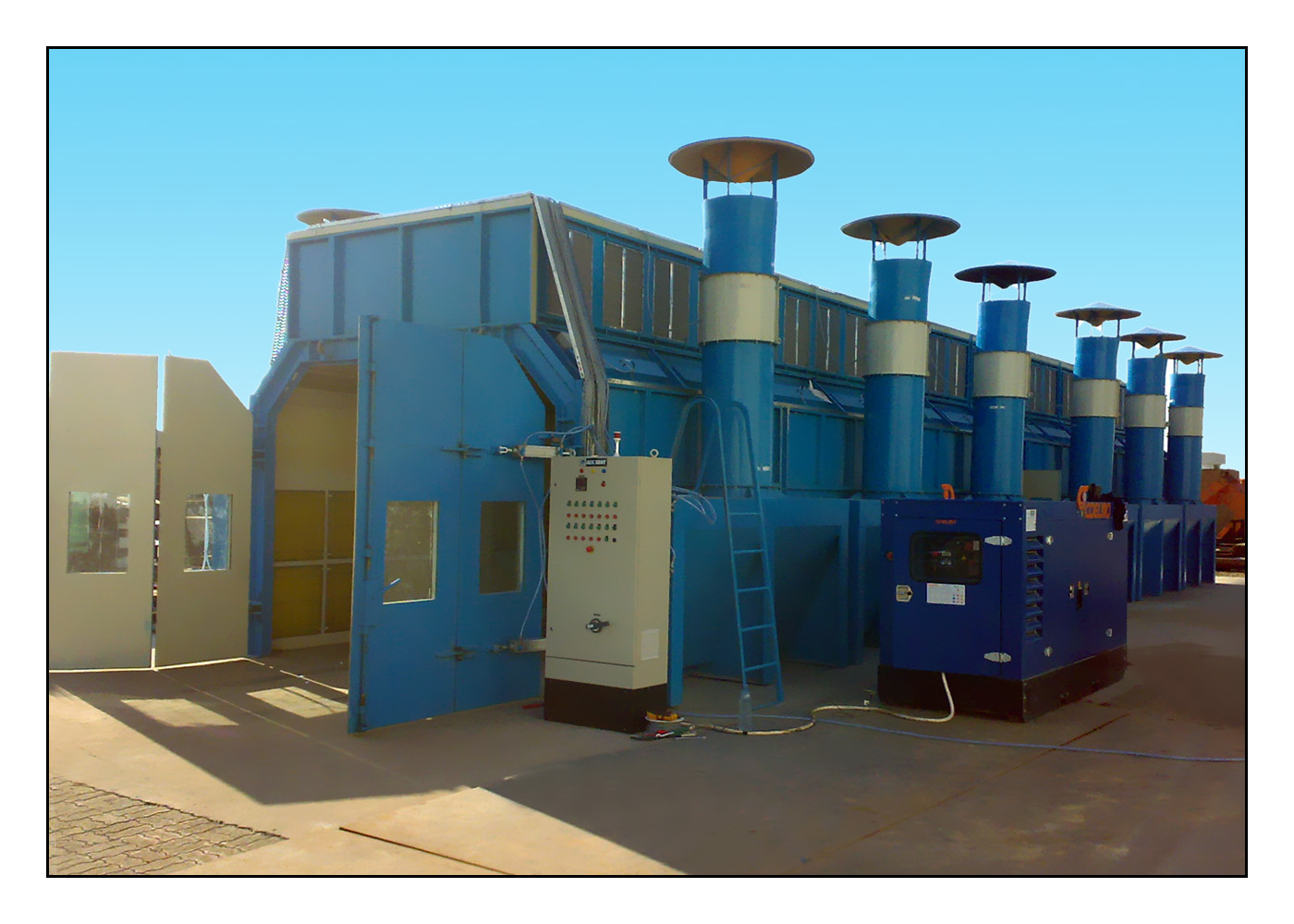

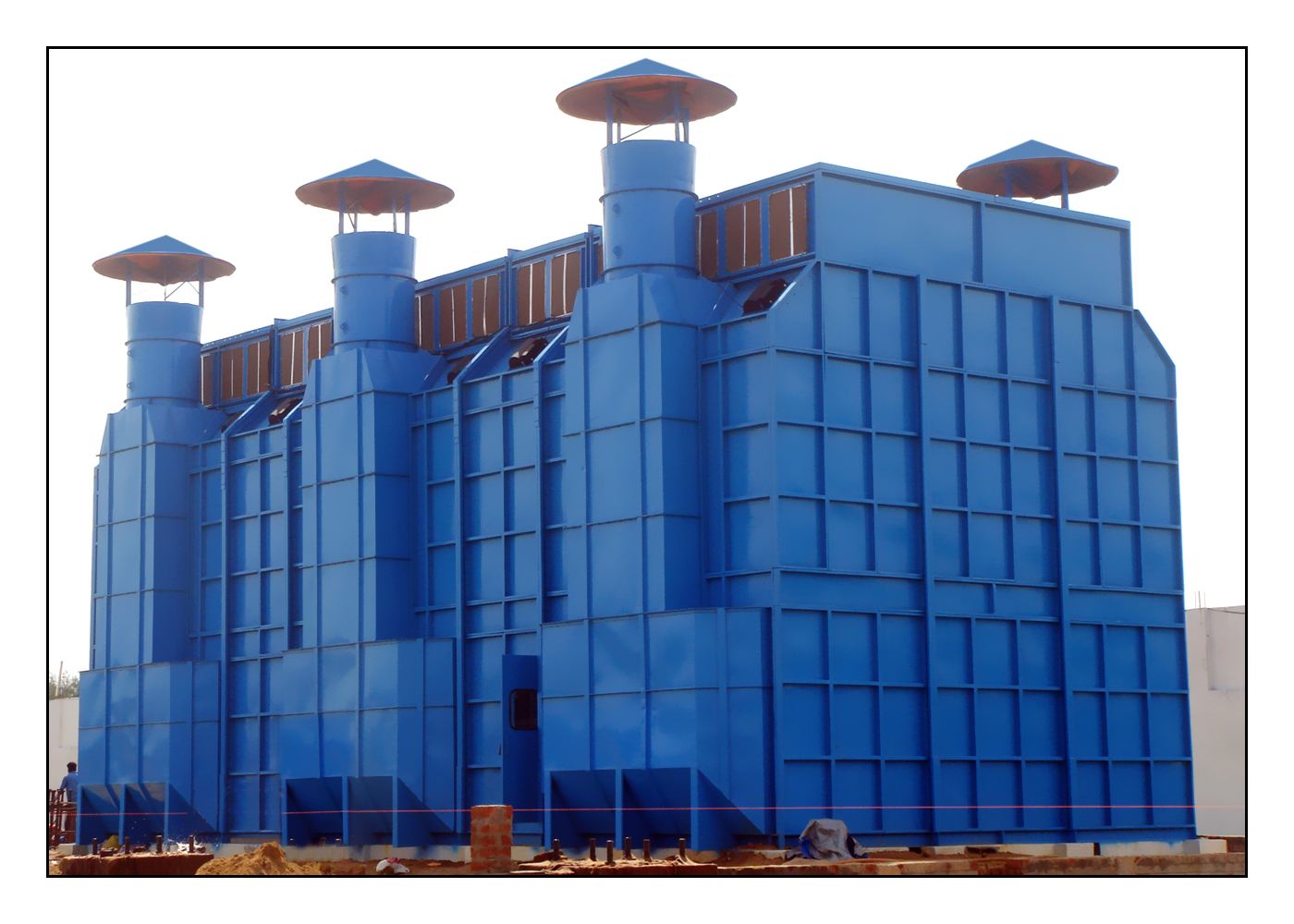

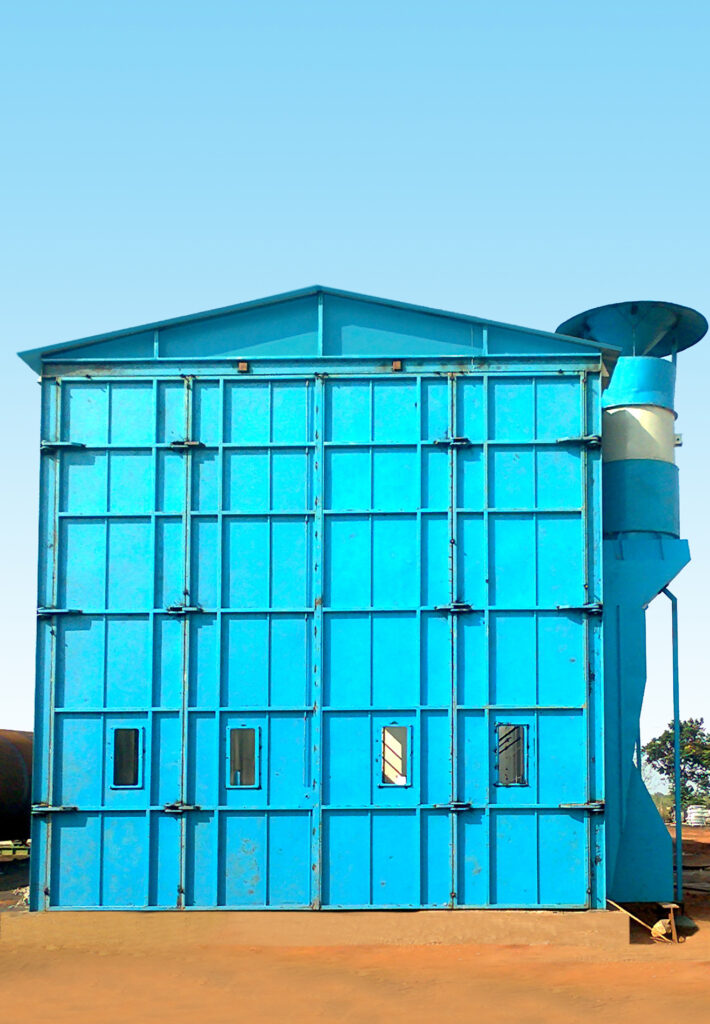

DRY SIDE-DRAFT TYPE PAINT SPRAY BOOTH

DRY SIDE-DRAFT TYPE PAINT SPRAY BOOTH SYSTEM

The Dry Side-Draft Type Paint Spray Booth System is a high-performance, eco-friendly solution designed for clean and efficient industrial painting operations. This booth captures overspray and airborne particulates through multi-stage dry filtration media, providing a dust-free, controlled painting environment. Built for consistent quality, operator safety, and low maintenance, it is ideal for applications demanding precision finishes with minimal environmental impact. Extensively adopted across automotive, heavy machinery, furniture, general fabrication, and aerospace industries, this system ensures reliable performance even in high-throughput environments.

Key Features:

Dry Filtration System: A multi-layered filter bank efficiently captures overspray and fine particulates, eliminating the need for water circulation and sludge disposal.

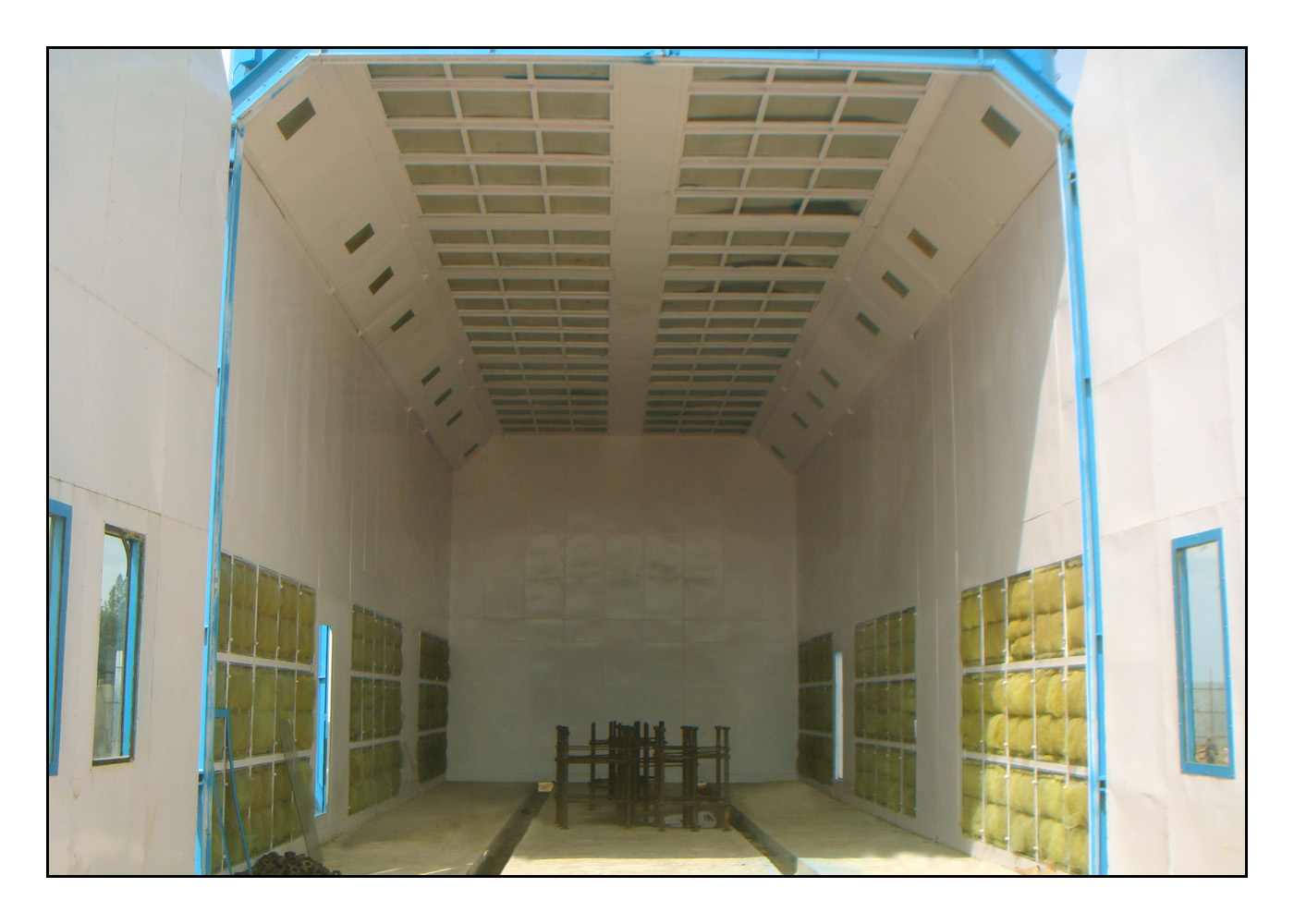

Side-Draft Airflow Design: The side-draft configuration ensures horizontal airflow across the work zone, drawing contaminated air through side-mounted filter walls—providing consistent air velocity, cleaner finishes, and safer breathing zones for the operator.
High-Efficiency Exhaust Fan: Equipped with robust, dynamically balanced fans for steady air extraction and improved filtration efficiency while maintaining compliance with ventilation standards.
Modular and Scalable Construction: Booths are manufactured in modular panels, allowing flexibility in booth size, layout, and integration into existing shop floor configurations.
Easy Filter Replacement: Front-access filter housing enables quick and hassle-free filter changeouts, minimizing downtime and maintenance efforts.
Durable Construction: Made from Puff Insulated Sandwich panels, or mild steel panels to ensure resistance against paint deposits, solvents, and corrosion.

Finishing Process and Applications:

The Dry Side-Draft Paint Spray Booth operates by drawing air horizontally across the painting zone toward side-mounted intake walls equipped with dry filters. As the operator applies paint, overspray and airborne particulates are captured immediately by the side airflow before they can settle or circulate within the booth. These contaminants are passed through multi-stage filters, typically starting with a high-capacity pre-filter followed by fine filters or optional HEPA/carbon units, depending on application demands. The cleaned air is then exhausted through a chimney duct, ensuring a clean work environment and operator safety. This method ensures consistent airflow, efficient overspray capture, and reduced paint fog—critical for achieving high-quality finishes.

Automotive Painting: Perfect for automotive shops, the system provides a controlled environment for painting vehicles and parts, ensuring a flawless finish.
Aerospace Components: Suitable for the painting and finishing of aerospace components that require precision and high-quality surface treatments.
Furniture Finishing: Ideal for woodworking shops looking to apply finishes to furniture and cabinetry in a clean environment.
Industrial Equipment: Used for painting industrial machinery and equipment, ensuring consistent and high-quality results.

Benefits

Dry Operation – No Water Handling: No need for water circulation, sludge removal, or water treatment, making it ideal for low-utility setups.
Cleaner Work Environment: Efficient dry filters trap particles and volatile paint residues, enhancing operator safety.
Low Maintenance Costs: Filter-based systems are easier to maintain than wet systems, requiring no tanks, pumps, or chemical treatments.
Eco-Conscious Design: Complies with air emission standards and minimizes environmental footprint by eliminating water discharge and chemical use.
Versatile Use: Compatible with both solvent-based and water-based paints.

Why Choose Our Dry Side-Draft Paint Booth Systems?

Industrial Precision Engineering: Our designs booths using real-world experience in surface finishing, ensuring airflow, lighting, and safety systems meet the demands of modern industries.
Tailored to Your Workflow: From loading mechanism to exhaust routing, our booths are designed around your production layout—boosting throughput and operational efficiency.
High-Efficiency Filtration: Engineered for optimal filter lifespan and overspray capture, our dry systems deliver clean air, reduced paint fog, and minimal filter clogging.
Rugged, Reliable Build Quality: With corrosion-resistant panels, reliable fans, and modular construction, Our booths are built for heavy-duty industrial usage and long service life.
All-In-One Support: We offer comprehensive support—from concept to commissioning and beyond. Our service team ensures reliable performance with low operational costs.
Safety and Compliance: Our dry booths are designed to meet or exceed safety norms, with flameproof options, efficient ventilation, and emission control—all in line with CPCB/SPCB guidelines.

Customization & Technical Options

Our Dry Side-Draft Paint Booth Systems can be tailored to meet the unique requirements of your operations. We offer full customization in airflow design, filtration stages, structure size, and job handling systems.

Job Handling & Workflow Solutions

Manual trolleys and skid-type push systems

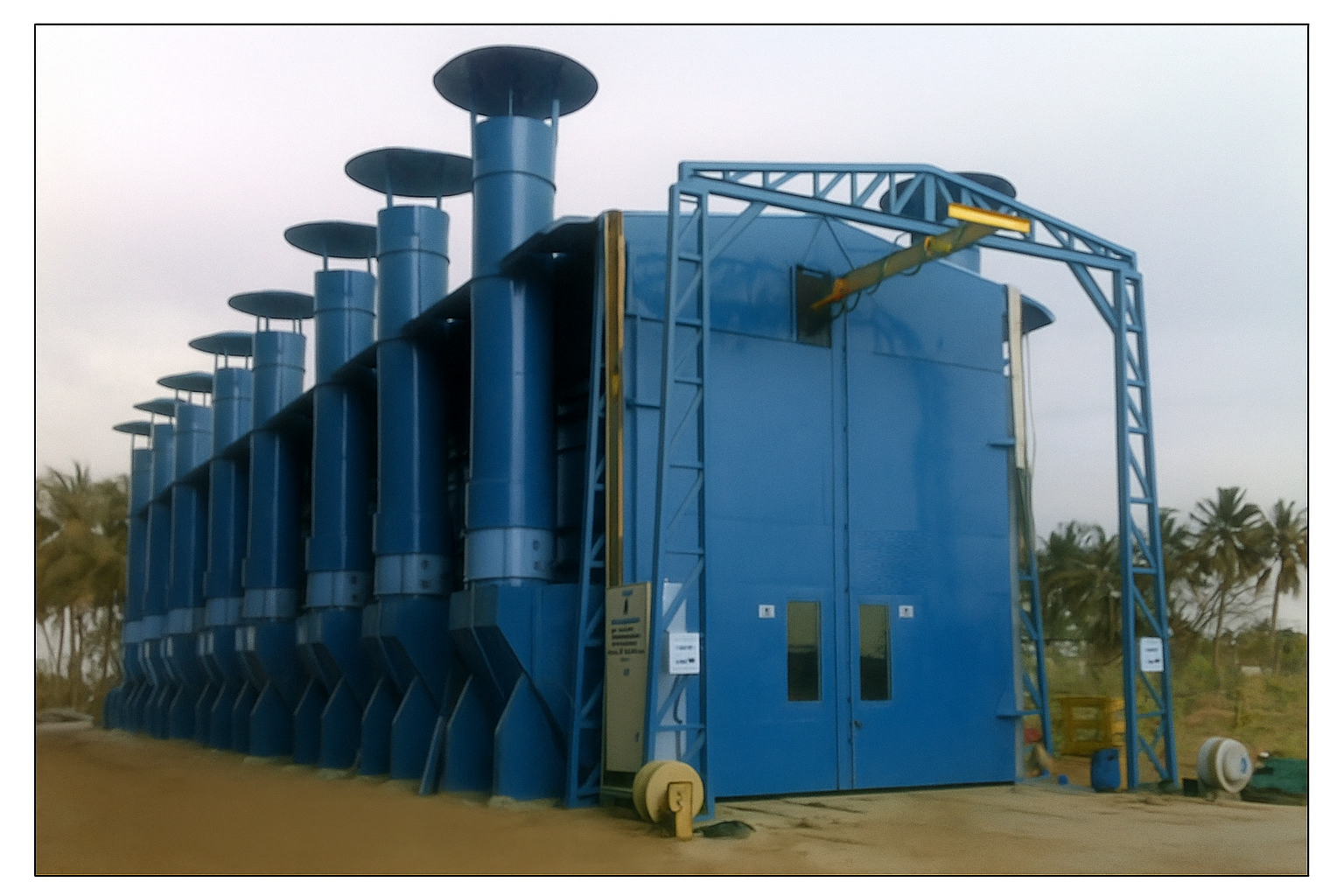

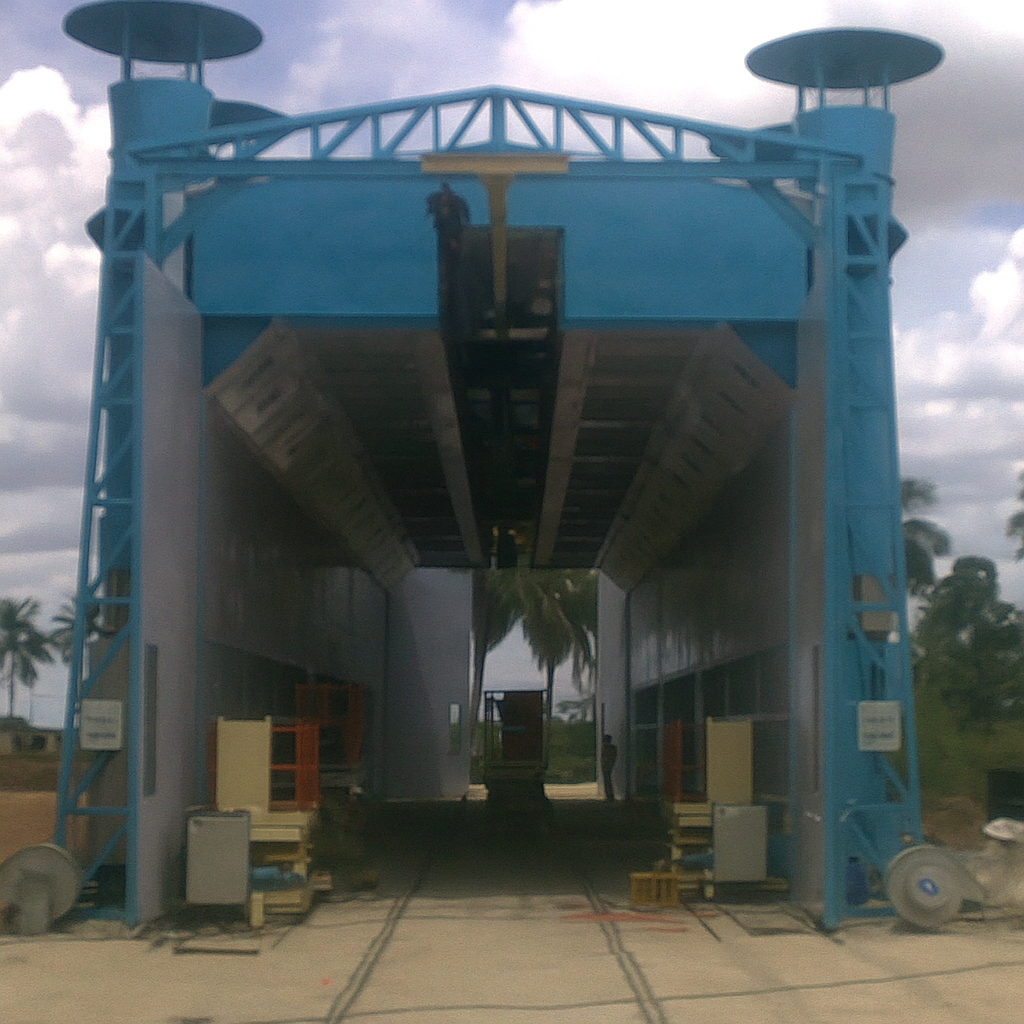

Overhead monorail or I-beam-based loading mechanisms
Scissor lift tables or pneumatic lifters
Power-driven conveyors for automated material flow

Door & Access Options

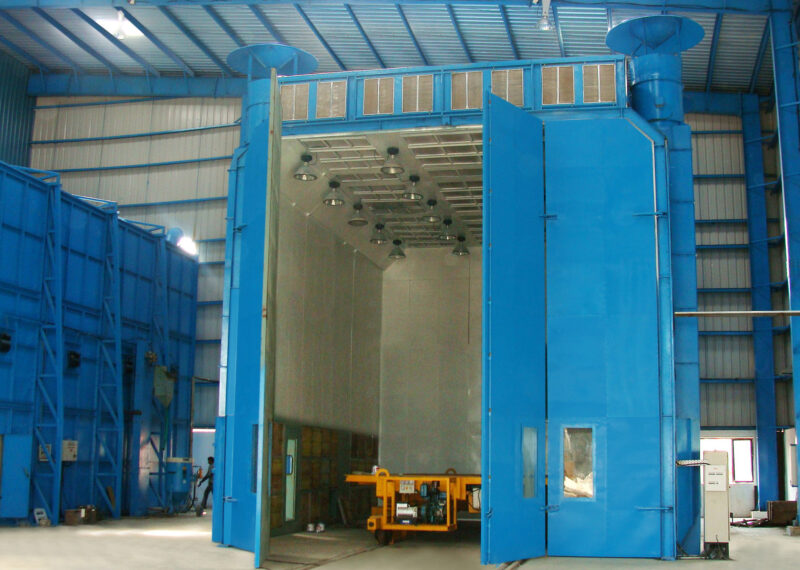

Swing-type double-leaf doors
Sliding doors for limited space setups
Rolling shutters or vertical lift doors for large job entry

Filtration & Exhaust Customization

Multi-stage pre-filter and final-filter combinations
Optional HEPA or activated carbon filters for high-precision applications
Extended exhaust ducting with silencers or dampers
Filter pressure drop indicators for proactive maintenance

Material & Electrical Customization

Puff insulated sandwich panels or Modular mild steel build
Flameproof motors and explosion-proof lights (on demand)
Custom lighting arrangements with LED fixtures
Observation/view panels for external inspection

Technical Support & After-Sales Service

Abrablast offers complete end-to-end support to ensure your booth operates efficiently throughout its life cycle:

Supervised installation & commissioning
On-site operator training and safety briefings
Annual Maintenance Contracts (AMCs) and periodic service plans
Stocked spare parts with priority dispatch
Remote support and on-call service engineers
Retrofitting and upgrades for legacy systems
