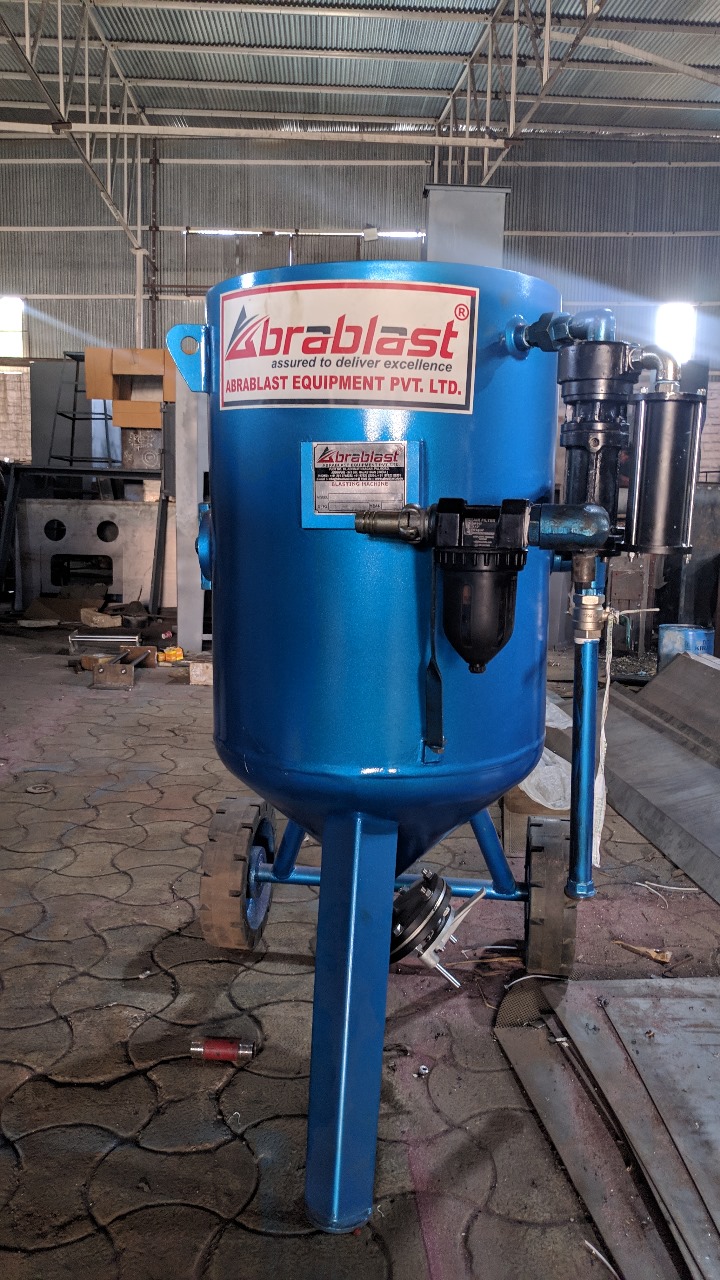

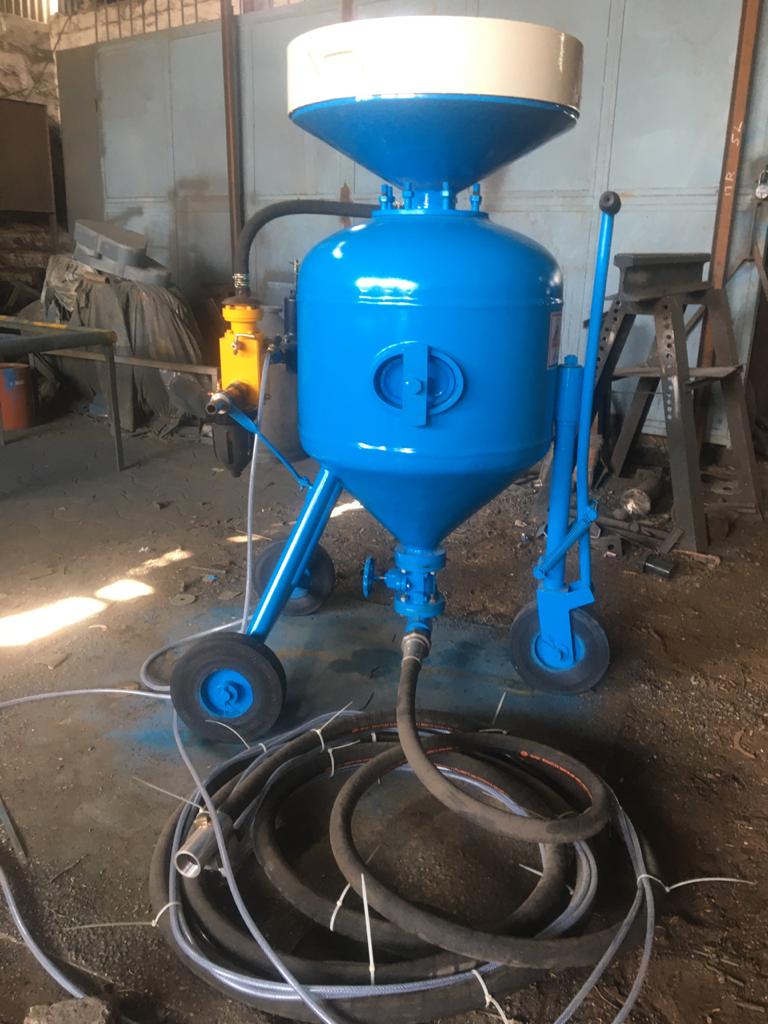

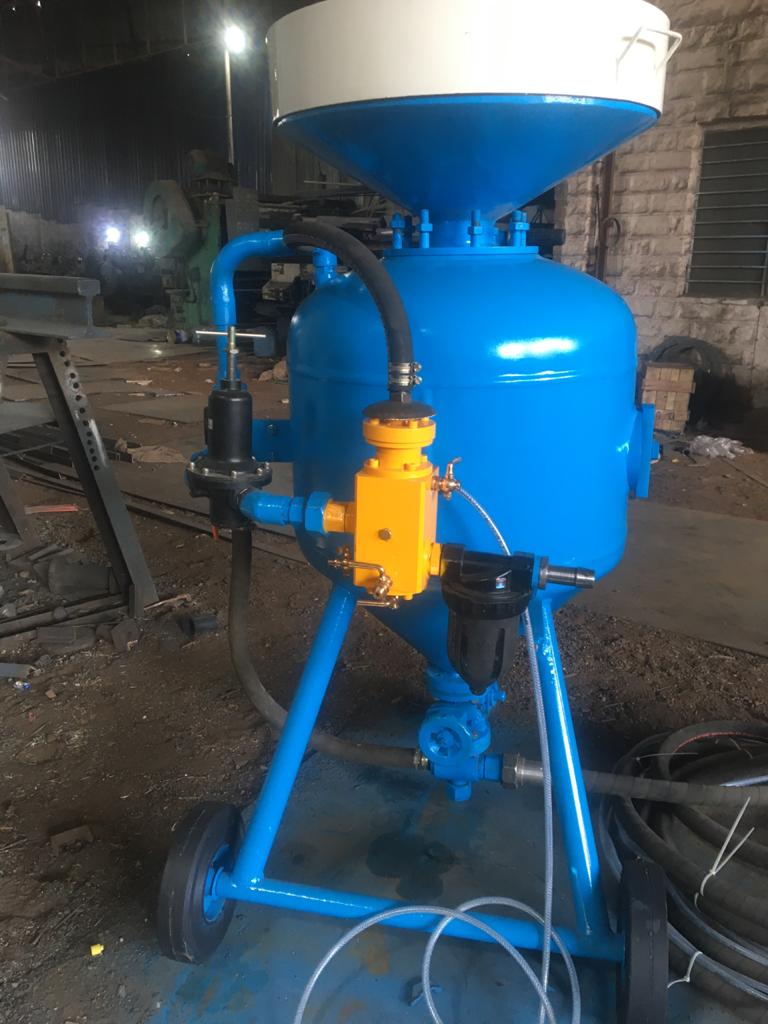

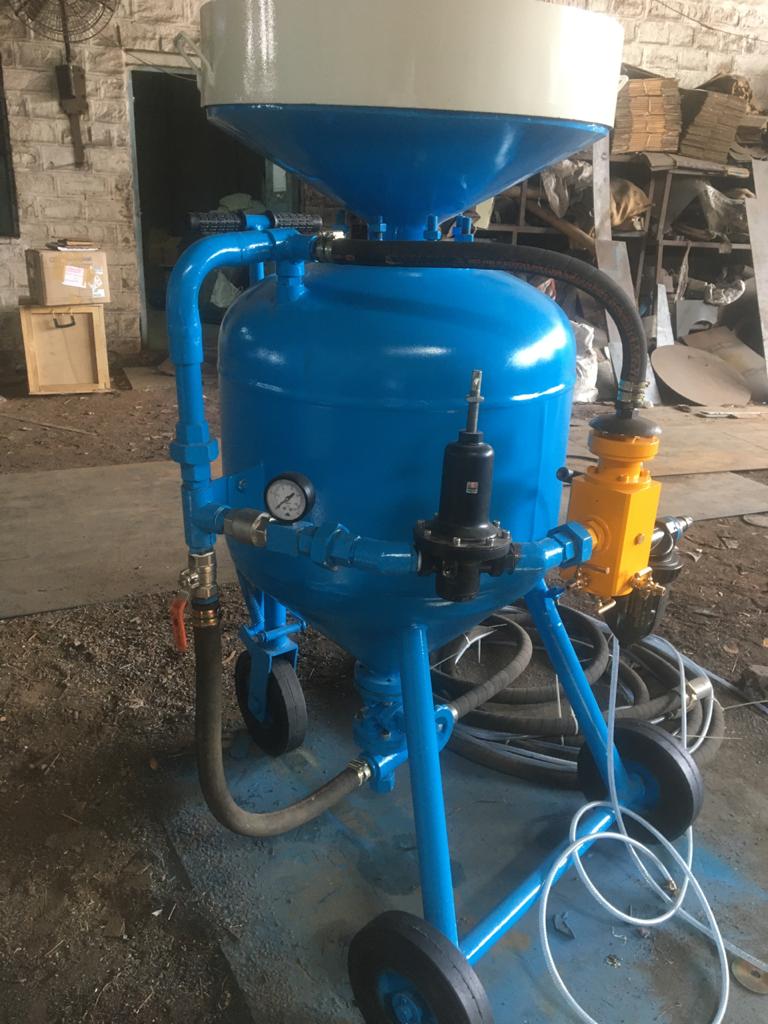

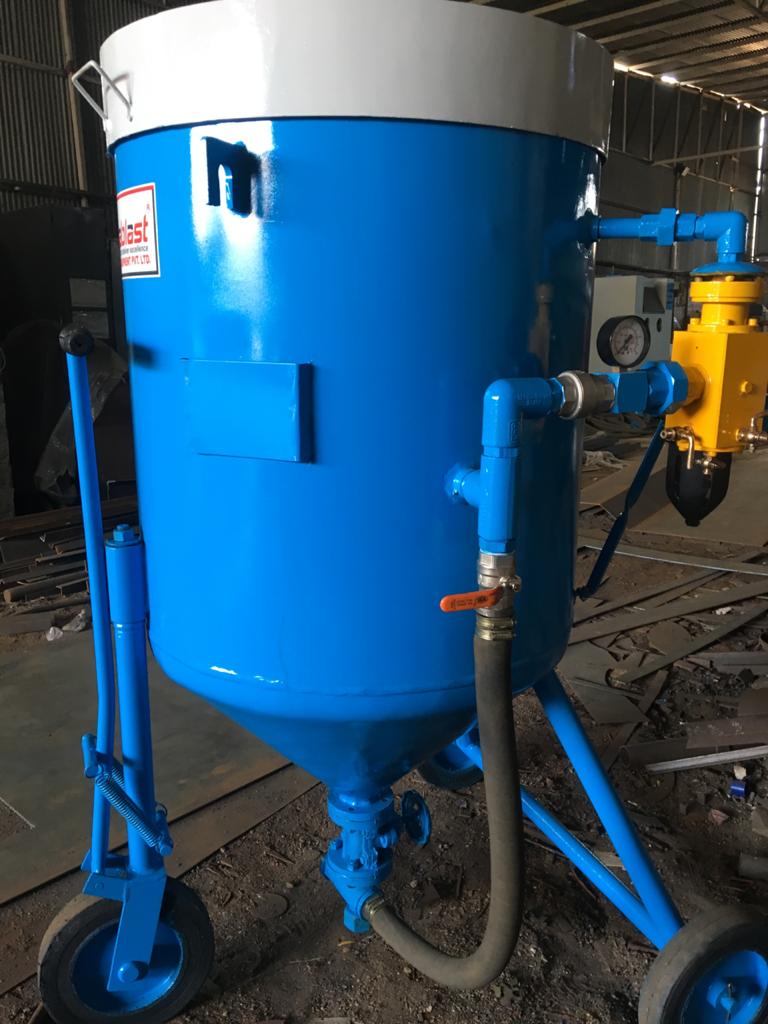

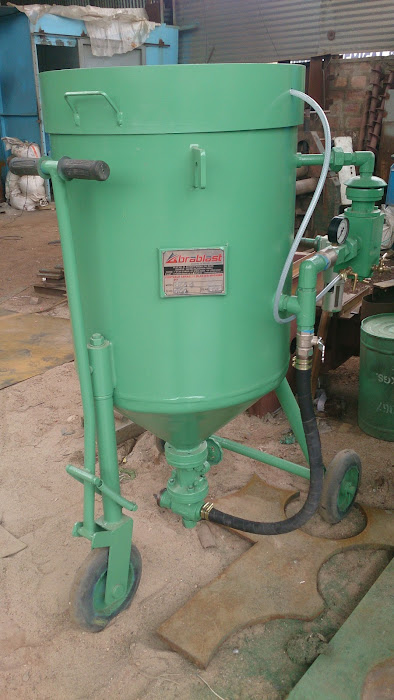

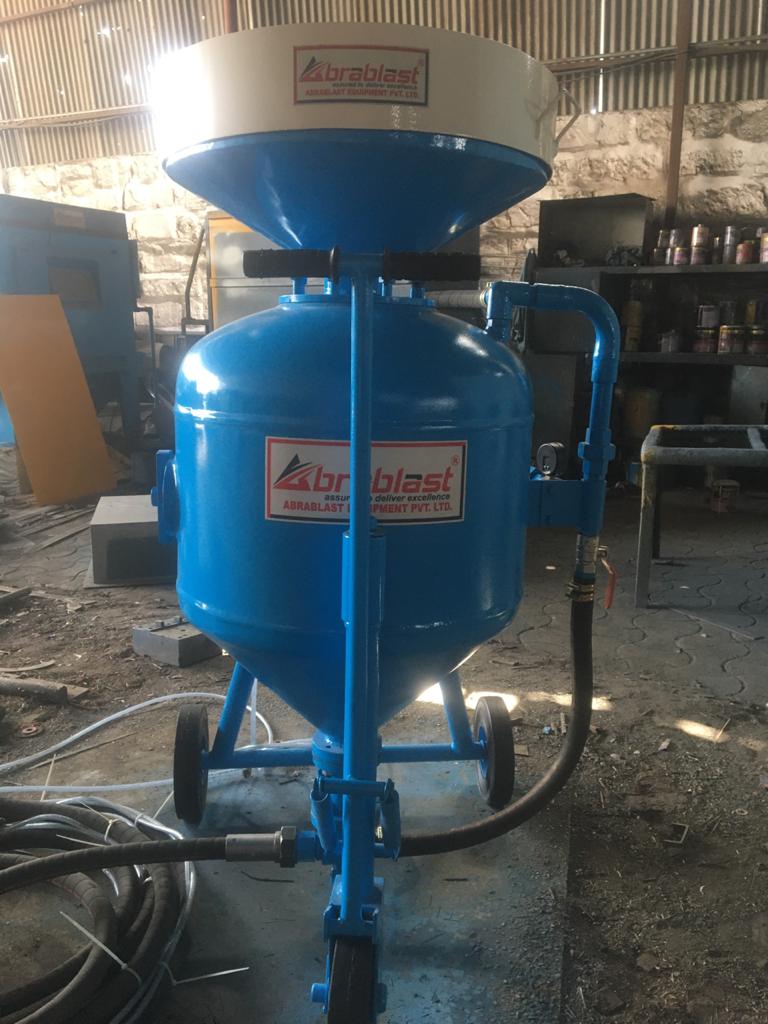

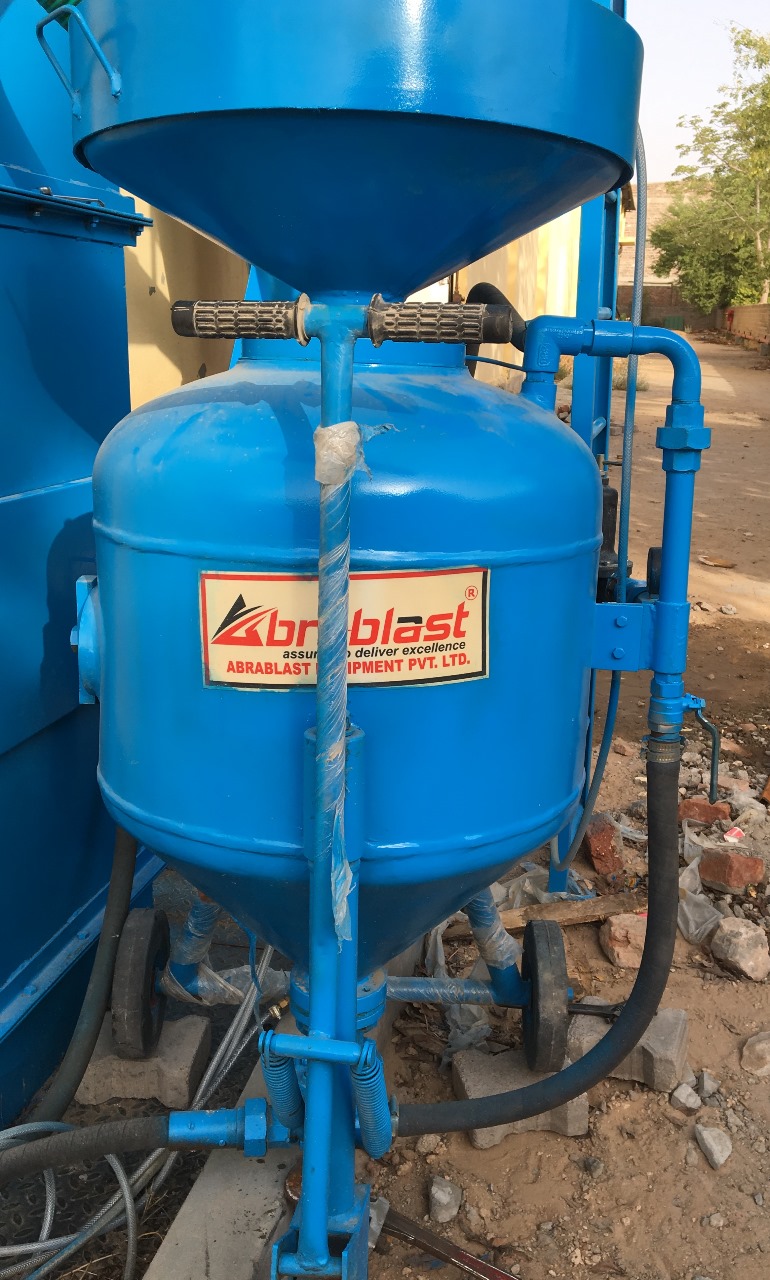

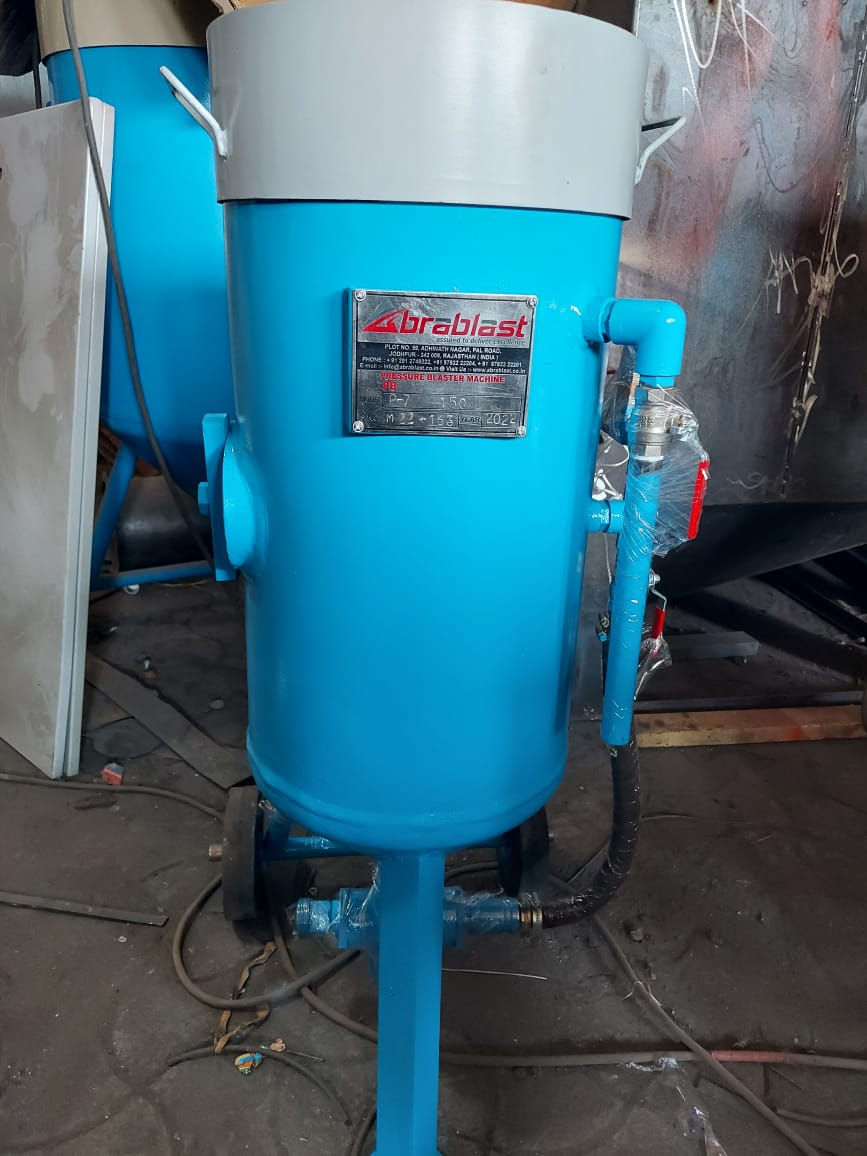

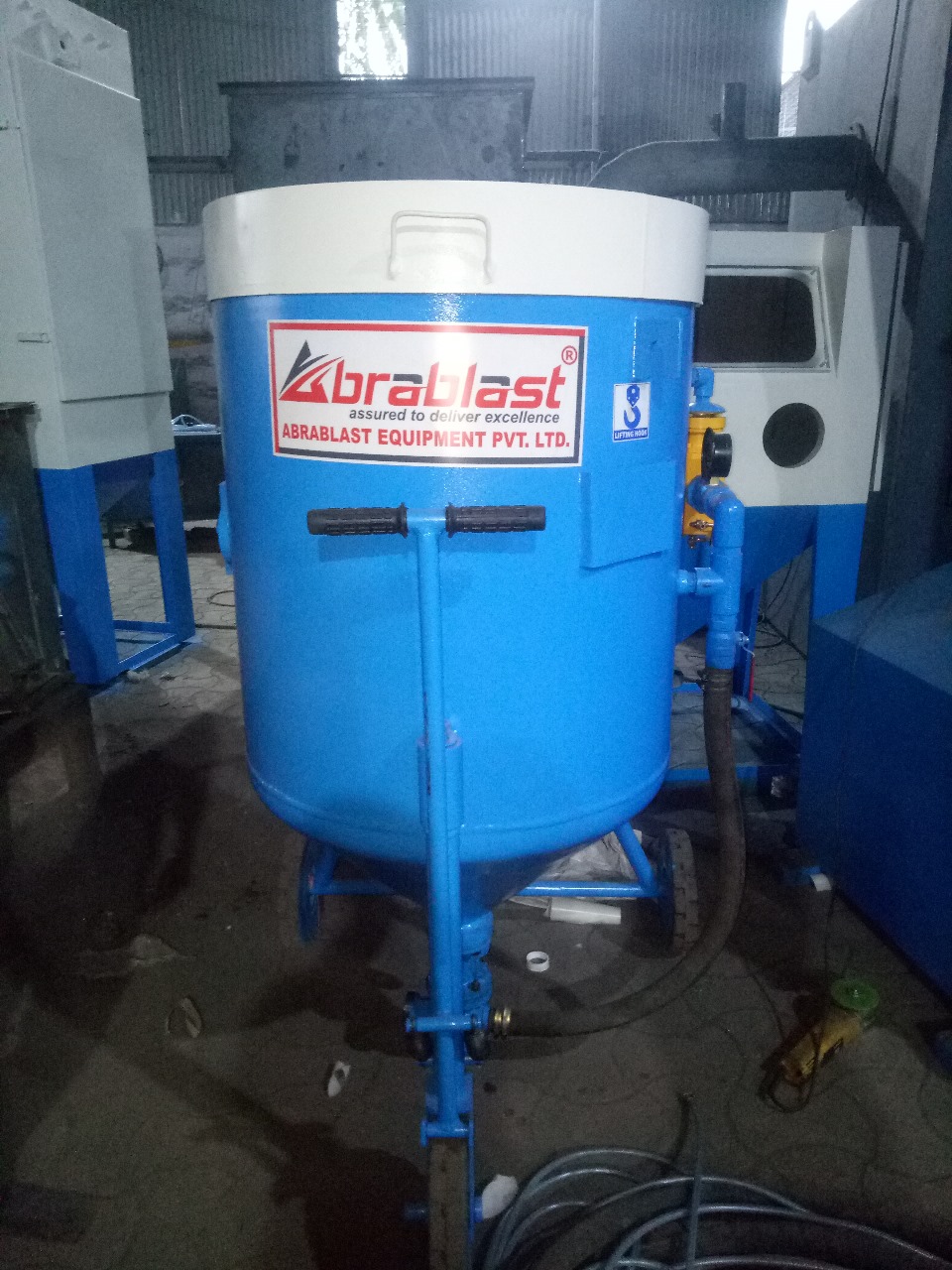

PORTABLE ABRASIVE BLASTING MACHINE

PORTABLE ABRASIVE BLASTER

The Portable Abrasive Blasting Machine is a rugged and versatile system designed for on-site surface preparation, cleaning, and restoration tasks. It works by propelling abrasive media at high speed to clean or profile surfaces such as steel, concrete, or aluminum. Whether you’re removing rust, paint, scale, or other surface contaminants, this mobile unit provides a reliable and effective solution for industrial and maintenance applications.

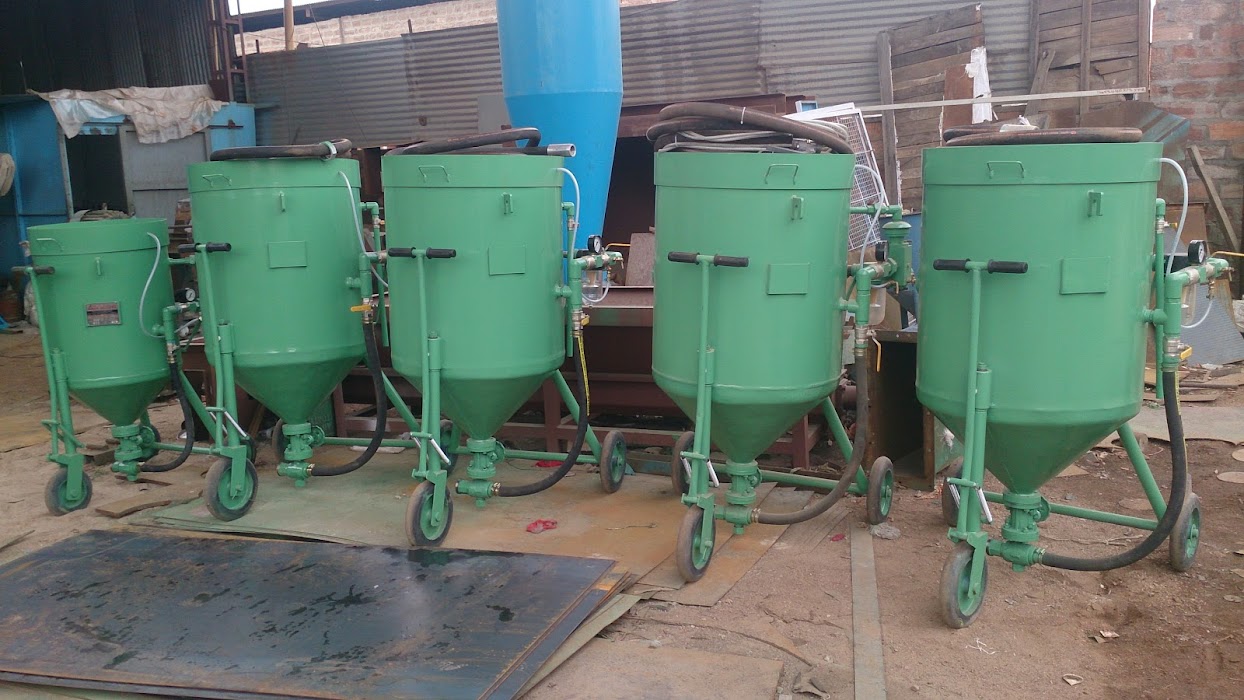

Available in various tank capacities — from compact to heavy-duty systems — these machines are built for durability, operational efficiency, and ease of transport. With options for remote control operation, moisture separation, and nozzle customization, they can be adapted to meet the specific needs of different industries and job sites.

Key Features

  • Heavy-Duty Pressure Vessel: Fabricated to withstand high pressures, each vessel is hydro-tested and complies with safety norms for trouble-free performance.
  • Precision Abrasive Metering Valve: Allows controlled flow of abrasive material, ensuring consistent blasting quality and reduced media wastage.

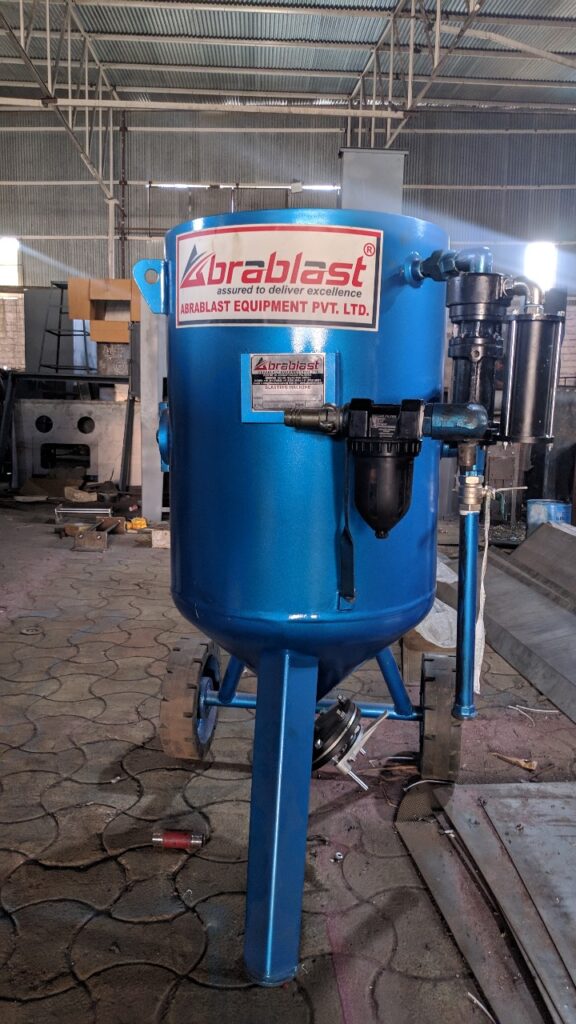

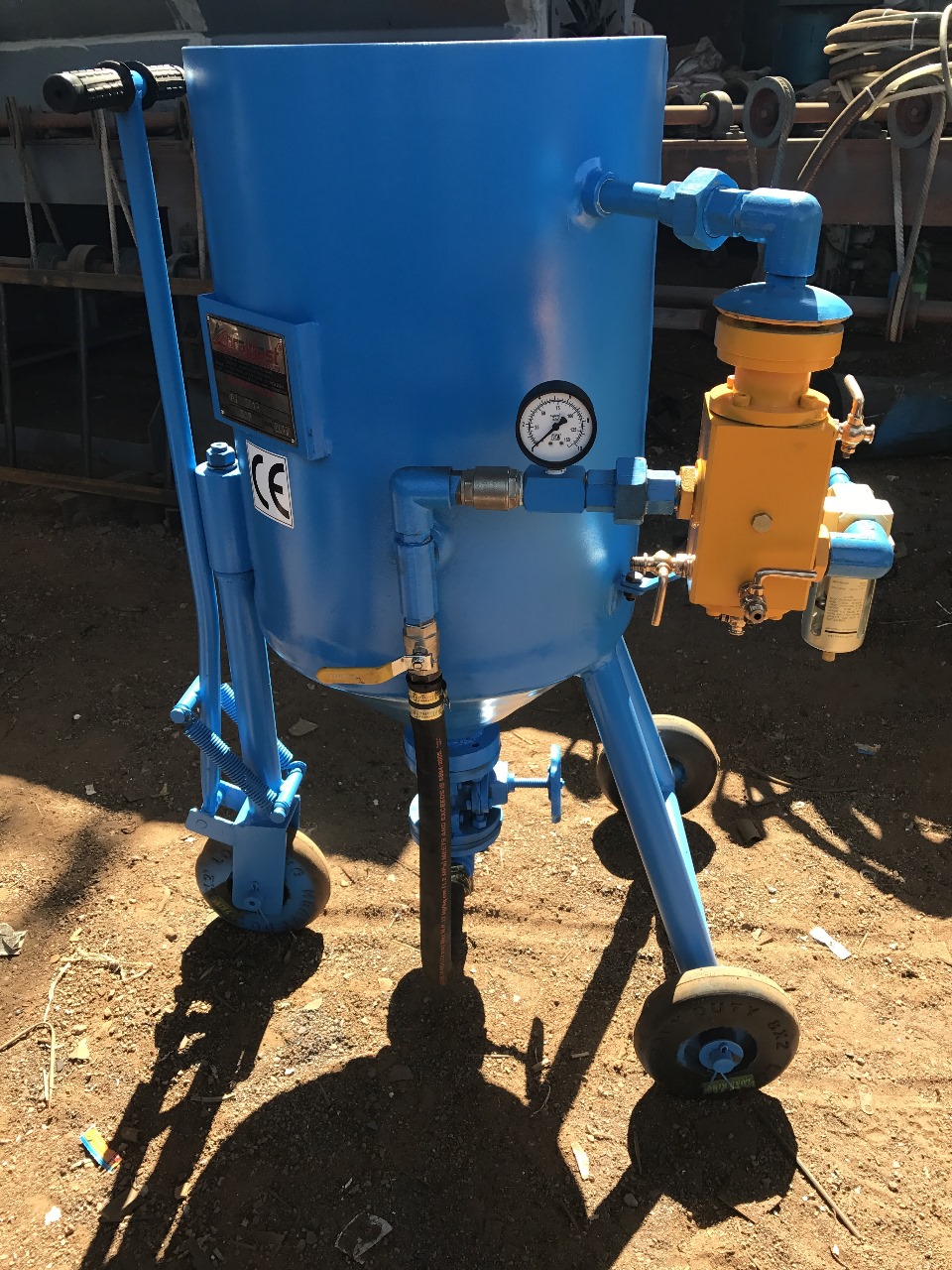

  • Moisture Separator with Drain Valve: Prevents moisture from entering the blast stream, which is crucial for achieving clean, dry blasting and protecting the system from clogging.

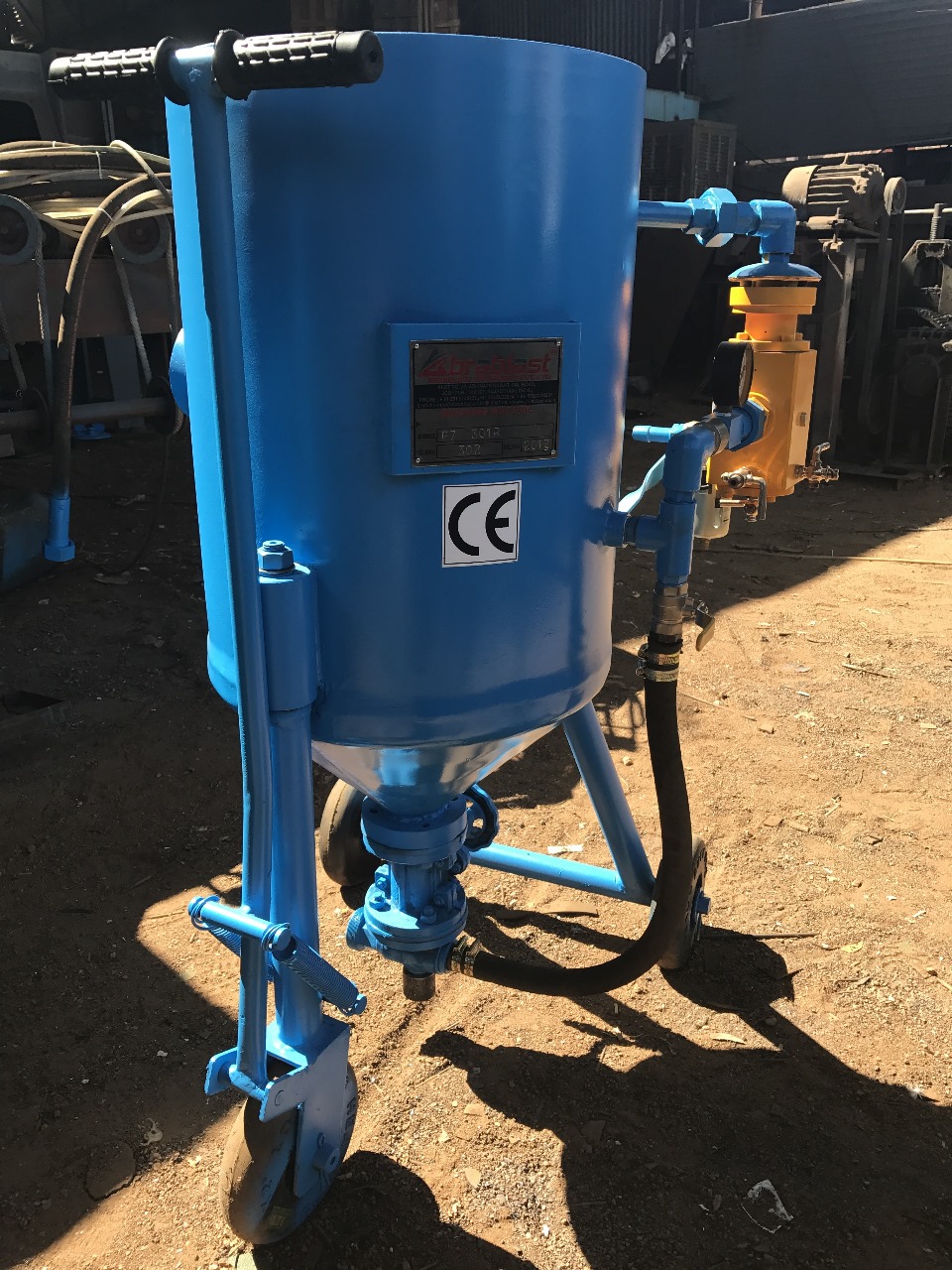

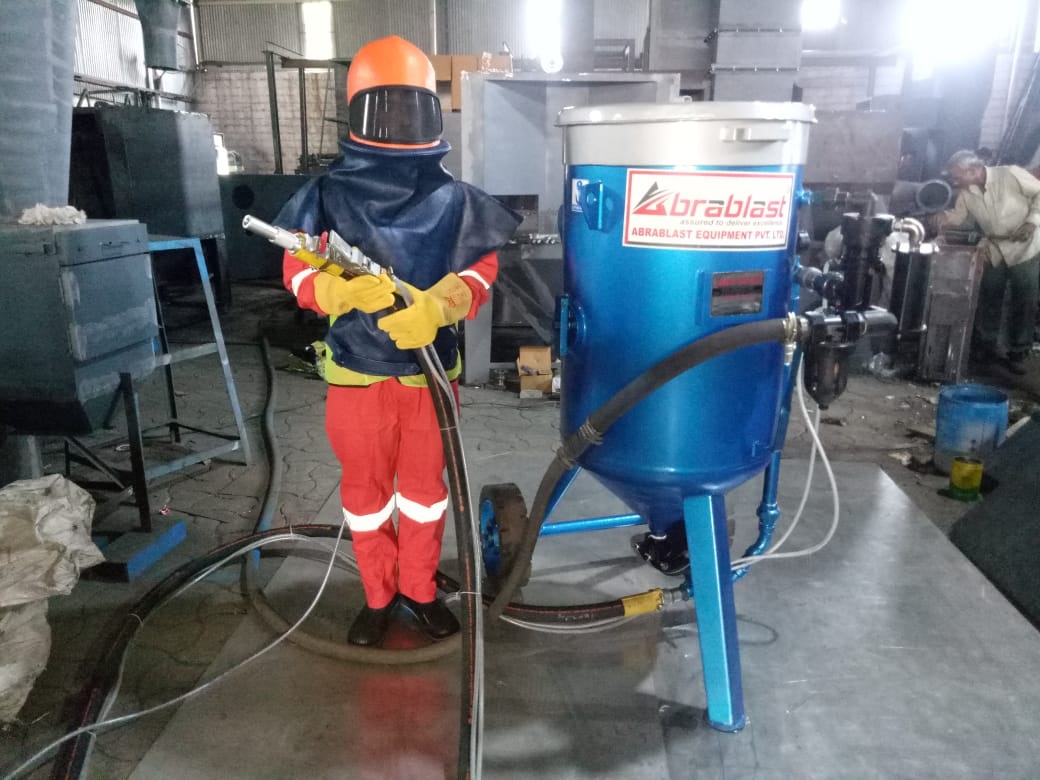

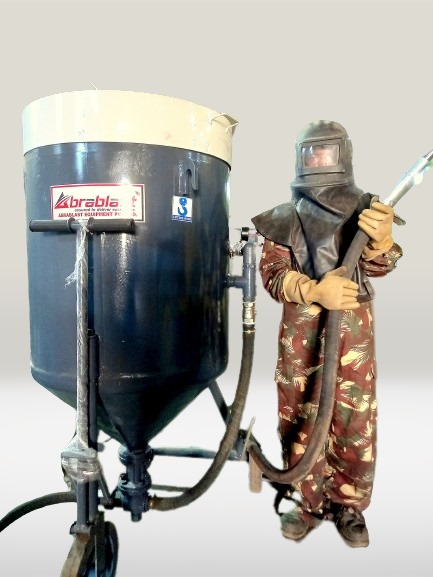

  • Remote Control System (Deadman Handle): Enables the operator to start and stop the blasting process from the nozzle end for maximum safety and convenience.

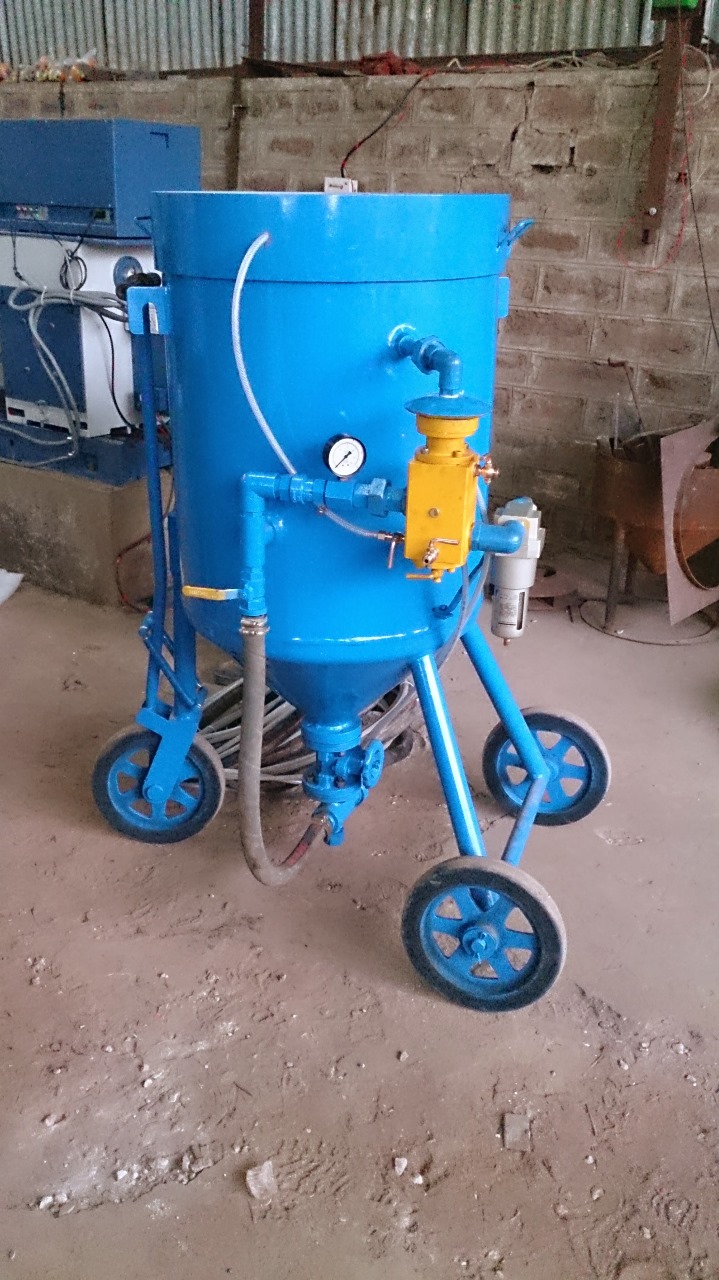

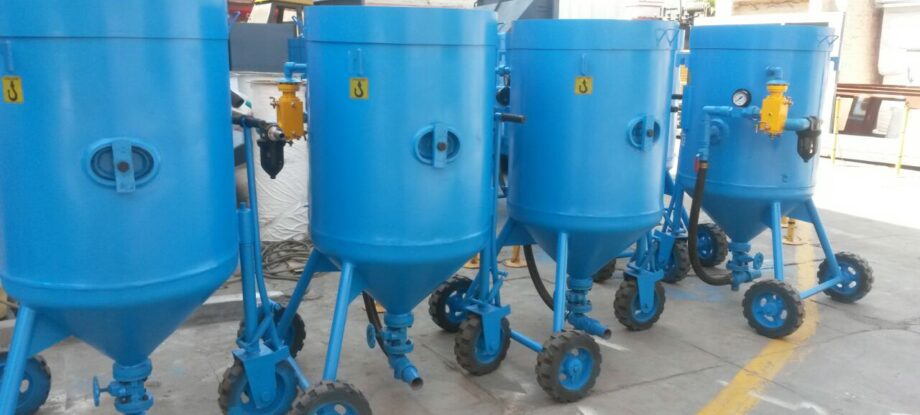

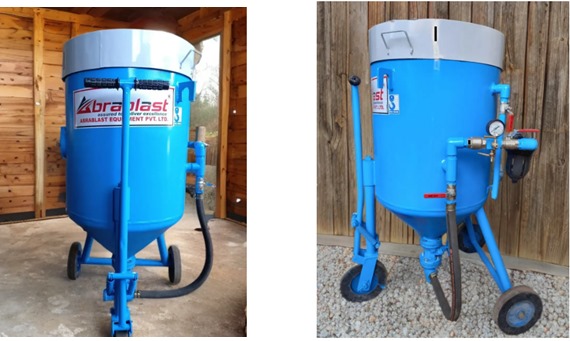

  • Portable & Maneuverable: Fitted with robust wheels or skid-mounted frames, these machines can be easily moved around construction sites, shipyards, or workshops.

Finishing Process and Applications:

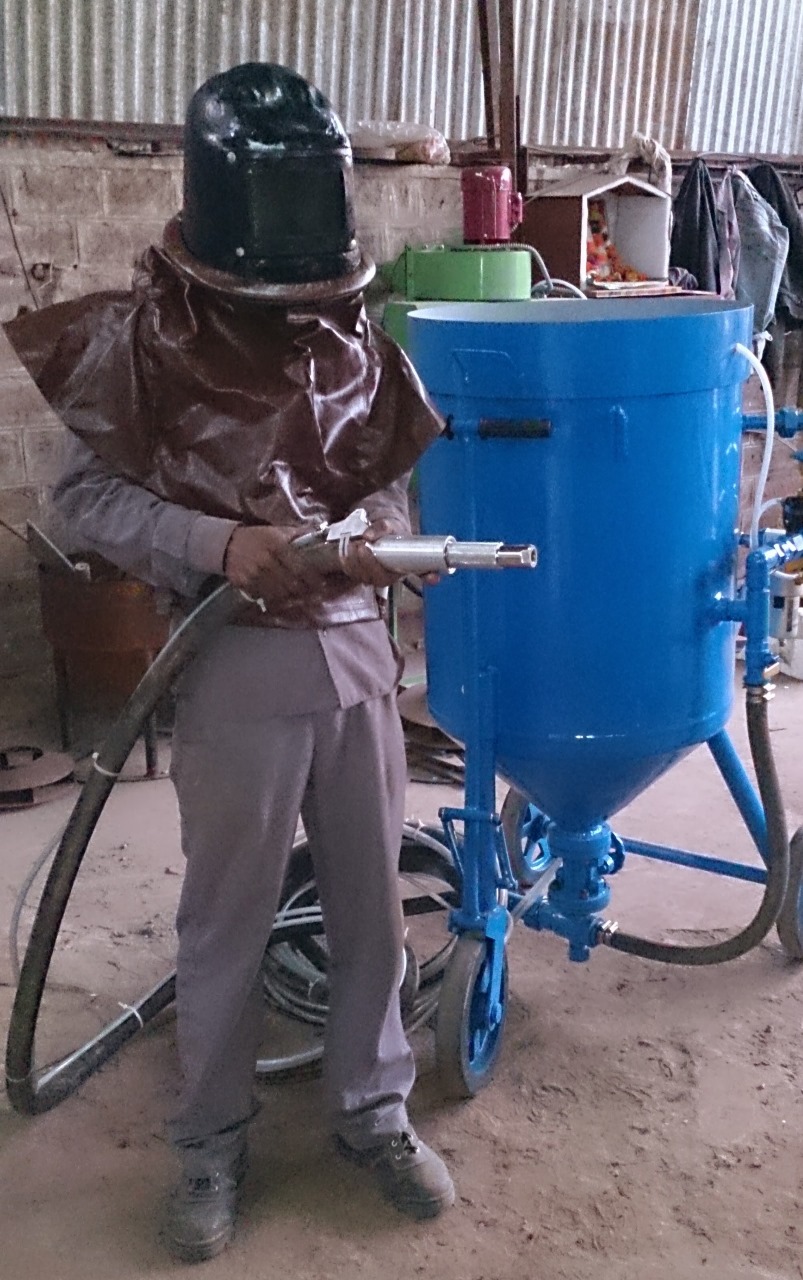

The machine operates using pressure blasting technology, where compressed air enters a sealed pressure tank filled with abrasive media. Once the operator activates the remote-control handle, the pressurized mixture of air and abrasive is forced through a metering valve and directed through a blast hose to the nozzle. At the nozzle tip, the high-speed abrasive stream impacts the surface, stripping away rust, old coatings, or contaminants. When the handle is released, the system immediately stops the blasting flow, enhancing both safety and material control. The blasting intensity and pattern can be adjusted by changing the air pressure, nozzle type, or abrasive flow rate.
  • Shipbuilding & Marine Industry: Cleaning ship hulls, decks, and ballast tanks prior to coating.
  • Oil & Gas Sector: Surface preparation of pipelines, pressure vessels, and tanks.
  • Structural Steel Fabrication: Cleaning welds, removing scale, and preparing for paint or galvanizing.
  • Civil & Infrastructure Projects: Bridge maintenance, concrete profiling, and surface cleaning.
  • Railways & Automotive: Restoring metal parts, bogies, wheels, and frames.
  • Power Plants & Cement Industries: Maintenance of heavy machinery, ducts, and structural supports.

Benefits

  • On-Site Blasting Capability: Easily transport the machine to remote or hard-to-reach job sites for immediate surface treatment.
  • Fast and Efficient Cleaning: Pressure blasting removes contaminants more quickly than conventional manual cleaning methods.
  • Improved Surface Adhesion: Creates a proper surface profile for better adhesion of coatings, paints, or metalizing sprays.
  • Low Operating Cost: Optimized abrasive flow and minimal maintenance requirements reduce long-term operational expenses.
  • Safety-Driven Design: Equipped with pressure relief valves, remote shut-off controls, and certified components for safe usage.
  • Media Flexibility: Compatible with steel grit, garnet, copper slag, aluminum oxide, and other abrasive types.

Why Choose Our Cabinet Type Abrasive Blasting Machine

At Abrablast, we focus on building machines that combine strength, precision, and user-focused design. Our Portable Abrasive Blasting Machines are trusted by clients across industries for their high performance, low maintenance, and dependable safety features. Every machine is built using premium-grade components and is backed by dedicated technical support, spare parts availability, and customization assistance.

We understand that no two blasting jobs are the same — that’s why we offer tailored configurations, tank sizes, and add-ons such as remote control valves, blast hoses, nozzles, and moisture separators to suit your exact operational needs.

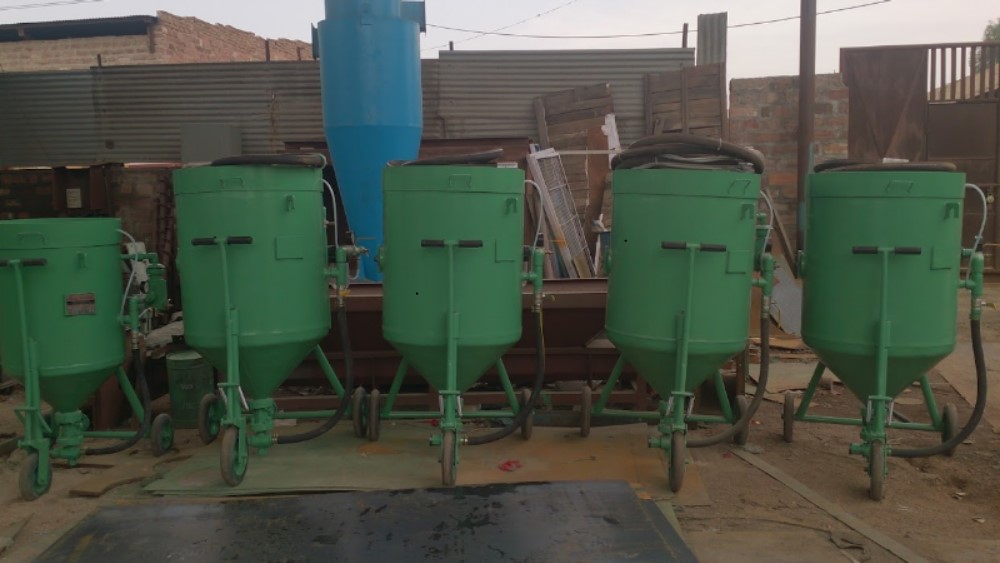

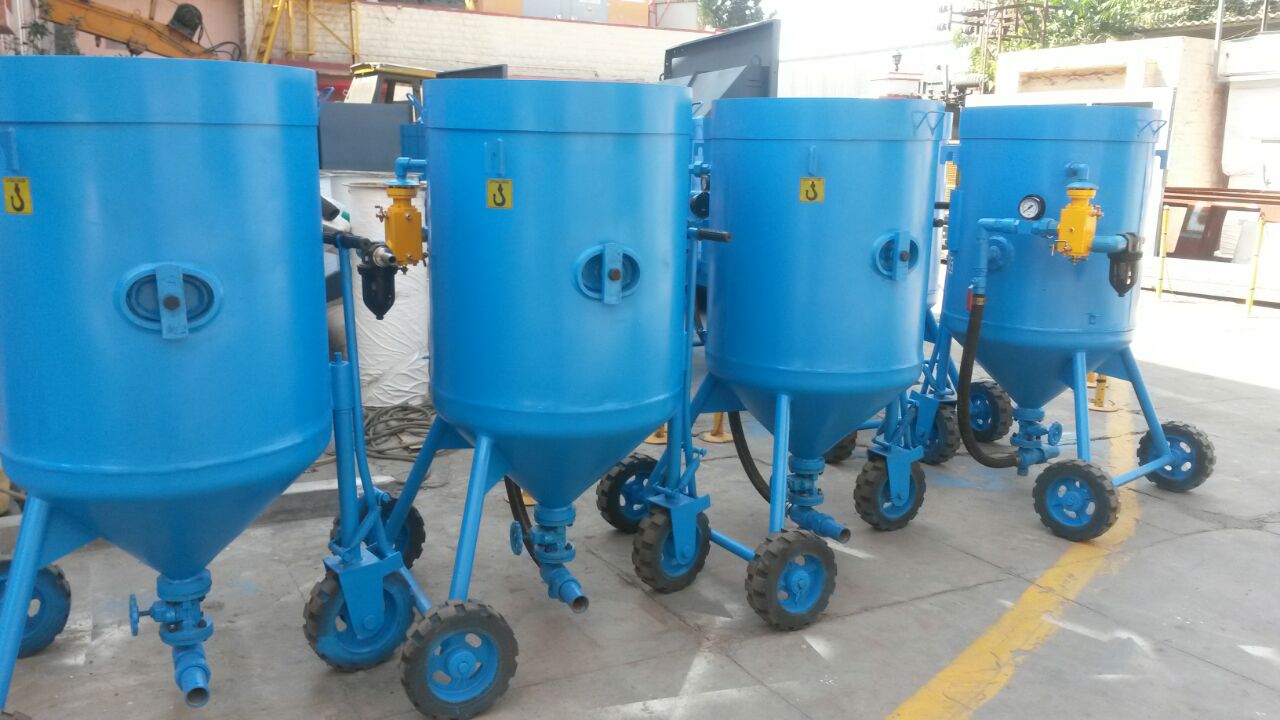

Blaster Series

Explore our complete range of Portable Abrasive Blasting Machines, engineered for efficiency, mobility, and application-specific performance. The Blaster Series offers both manual and remote-controlled models, with options for standard and specialized blasting media.
  • Model: P7-150 (Manual)
  • Model: P7-301R (Remote Control)
  • Model: P7-501R (Remote Control)
  • Model: P7-501R-SPL (Remote Control - Glass Bead Blasting)
  • Model: P7-1001R (Remote Control)
  • Model: P7-1001R - (For Export)Also available in different variant models as per requirement

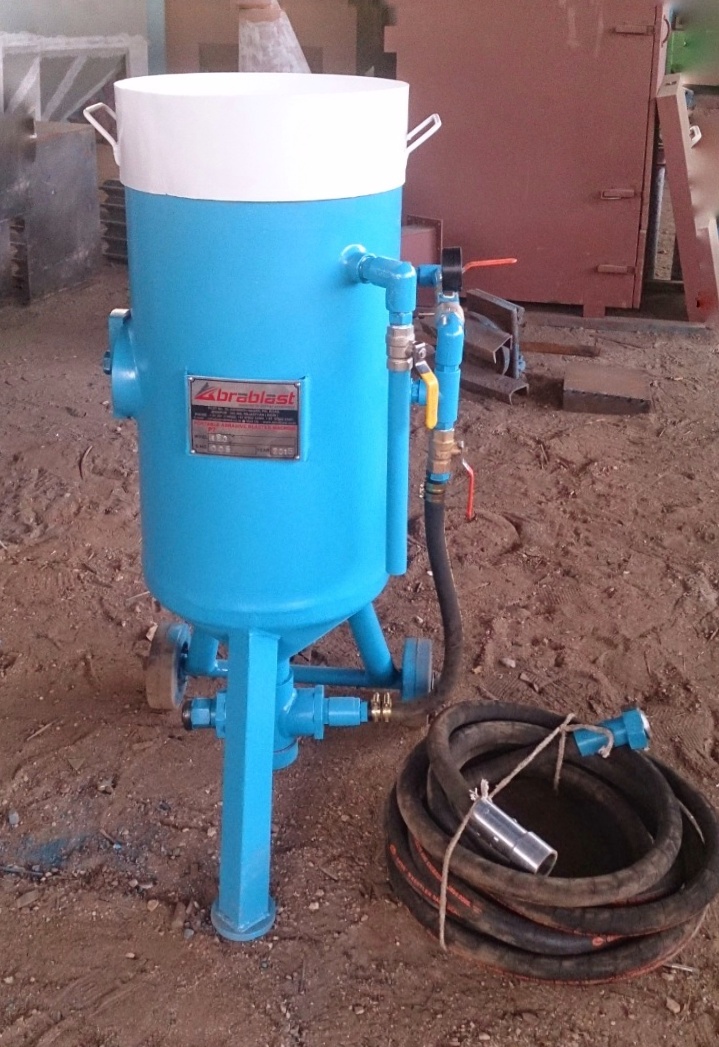

1) Model: P7-150 (Manual)

Overview: The P7-150 is a compact and lightweight manual abrasive blasting machine, ideal for small to medium-scale surface cleaning and maintenance jobs. Its simple design and easy operability make it perfect for entry-level use or short-duration blasting tasks.

Specifications:

  • Abrasive Tank Capacity: 150 Liters
  • Operation Mode: Manual (with hand-operated valve)
  • Recommended Air Compressor: 80–100 CFM @ 7–8 Bar
  • Application: Light-duty rust/paint removal, touch-up blasting
  • Mobility: Fitted with wheels for site movement

2) Model: P7-301R (Remote Control)

Overview: The P7-301R is a mid-sized, remote-controlled abrasive blasting machine designed for enhanced operator safety and blasting control. Suitable for demanding surface preparation tasks where longer blasting cycles are required.

Specifications:

  • Abrasive Tank Capacity: 300 Liters
  • Operation Mode: Remote Control with Deadman Handle
  • Air Requirement: 110–150 CFM @ 7–8 Bar
  • Abrasive Flow Control: Through metering valve
  • Application: Structural steel, pipelines, machinery cleaning
  • Mobility: Heavy-duty wheels with skid base

3) Model: P7-501R (Remote Control)

Overview: The P7-501R offers a larger capacity and is suited for continuous blasting operations in industrial and fabrication environments. The integrated moisture separator and remote control system ensure consistent and safe performance.

Specifications:

  • Abrasive Tank Capacity: 500 Liters
  • Operation Mode: Remote Control with Safety Interlocks
  • Air Requirement: 160–200 CFM @ 7–8 Bar
  • Abrasive Metering: Precise valve-based regulation
  • Ideal For: Heavy-duty fabrication shops, marine industry, bridges
  • Construction: Skid-mounted with optional lifting hooks

4) Model: P7-501R-SPL (Remote Control – For Glass Bead Blasting)

Overview: A specialized variant of the P7-501R, this model is configured exclusively for glass bead blasting, which requires controlled pressure and non-aggressive media flow. It is widely used for surface finishing, peening, and delicate component cleaning.

Specifications:

  • Abrasive Tank Capacity: 500 Liters
  • Abrasive Flow Valve: Dump Valve Assembly
  • Pressure Regulation: Adjustable for low-pressure applications
  • Air Requirement: 160–200 CFM @ 4–6 Bar (Recommended for glass bead)
  • Nozzle Type: Special wear-resistant for fine media
  • Application: Aerospace, auto components, die polishing, stainless steel finishing

5) Model: P7-1001R (Remote Control)

Overview: The P7-1001R is a high-capacity industrial-grade blasting machine built for intensive, large-scale surface treatment projects. With a 1000-liter tank, it significantly reduces downtime due to frequent refills, boosting productivity.

Specifications:

  • Abrasive Tank Capacity: 1000 Liters
  • Operation Mode: Remote Controlled for Safety & Control
  • Air Requirement: 220–300 CFM @ 7–8 Bar
  • Use Cases: Shipbuilding, oil & gas tanks, boiler repair, large structures
  • Accessories: Moisture separator, pressure relief valve, large ID blast hose

6) Model: P7-1001R (For Export – Customizable)

Overview: This export-grade version of the P7-1001R is tailored for international specifications and regulations. It offers flexible configurations based on customer-specific requirements — from valve types and pressure ratings to surface coatings and safety features.

Specifications:

  • Abrasive Tank Capacity: 1000 Liters
  • Customization Options: Voltage standards, paint finish, brand-specific valves, packaging for export
  • Operation Mode: Remote Control (with upgrade potential)
  • Compliance: Meets global quality and safety certifications
  • Application: Global construction, energy, and defense projects
  • Shipping: Export-ready packaging and documentation provided
