ROTARY INDEXING TYPE SHOT BLASTING MACHINE

ROTARY INDEXING TYPE SHOT BLASTING MACHINE

The Rotary Indexing Type Shot Blasting Machine is a precision-engineered solution designed for high-volume and high-accuracy surface treatment applications. With a rotating turret mechanism and multiple workstations, this system allows simultaneous loading, blasting, and unloading, significantly enhancing productivity while ensuring consistent and repeatable results.

Ideal for small to medium-sized components such as automotive parts, forged tools, and aerospace hardware, this machine delivers uniform surface finishing, rust removal, shot peening, or cosmetic blasting with high efficiency. Built to withstand continuous operation in demanding environments, the system integrates advanced automation, robust construction, and flexible customization capabilities.

Key Features

Multi-Station Rotary Indexing Table: Enables uninterrupted processing with separate zones for loading, blasting, and unloading, ensuring a smooth workflow and increased throughput.
Gun Reciprocation System: Air-based abrasive blasting (e.g., with fine media or delicate parts), a reciprocating gun system ensures even coverage and smooth motion across complex surfaces, enhancing the quality of finish without manual intervention.
Automated Indexing: Provides accurate, programmable part positioning, ensuring consistent exposure to the blasting stream and minimizing operator dependency.
Heavy-Duty Rubber Lined Chamber: The blast chamber is lined with replaceable wear-resistant rubber sheets to prolong life and protect the machine from abrasive damage.
Efficient Dust Extraction & Media Separation: Equipped with a high-efficiency dust collector and media separator to keep the media clean and maintain an environmentally safe operation zone.

Finishing Process and Applications:

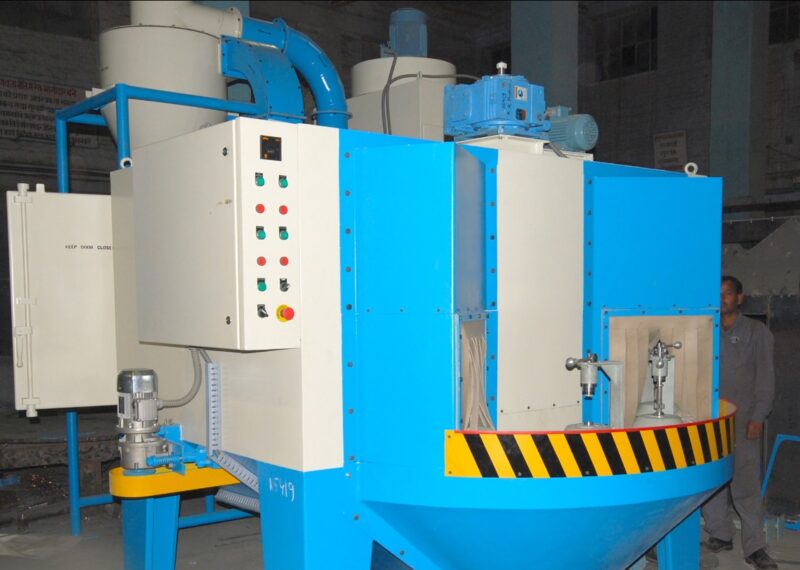

The machine features a rotary indexing table with multiple fixtures that hold components. As the table indexes, each part moves through defined zones — loading, blasting, and unloading. Inside the blast chamber, high-speed turbines or reciprocating air guns project abrasive media onto the surface, ensuring complete and uniform coverage. Used media is collected, cleaned through a magnetic separator, and recirculated, enabling a continuous, closed-loop operation with minimal manual intervention.

Automotive Industry: Extensively used for cleaning and surface finishing of components like brake drums, cylinder heads, gear housings, clutch plates, crankshafts, and connecting rods. It is also ideal for pre-coating or painting preparation of various metal parts.
Aerospace & Aviation: Perfect for blasting turbine blades, aircraft brackets, landing gear parts, and critical alloy castings where surface integrity and dimensional precision are paramount.
Automotive & Engine Rebuilding: Foundry & Casting Units: Used to clean die-cast aluminum, zinc, or magnesium components, and for removing casting residues, burrs, and oxidation without damaging dimensional tolerances.
Forging & Machining Units: Applied for deburring, descaling, or surface conditioning of machined tools, dies, shafts, fasteners, and forged components before assembly or further processing.
Medical, Defence & Precision Engineering: Suited for blasting surgical tools, orthopedic implants, and small defence parts where smooth surface preparation or micro-etching is necessary without deforming the part.
General Fabrication & Metalworking: Used for cleaning small welded or fabricated structures, sheet metal components, and metal furniture parts prior to coating or powder painting.

Benefits

Streamlined Workflow: Continuous cycle improves productivity and reduces idle time
Uniform Surface Finish: Precision indexing and controlled blasting ensure repeatable quality
Reduced Operator Fatigue: Automated processes limit manual intervention
Lower Operating Costs: Energy-efficient turbines and media recycling minimize resource consumption
Compact & Modular Design: Requires minimal floor space and allows integration with other systems
Reduced Maintenance Requirements: Internal rinsing action during blasting helps keep components clean, extending the life of seals, filters, and the blast chamber.

Why Choose Our Cabinet Type Abrasive Blasting Machine

With over two decades of experience in shot blasting technology, Abrablast delivers machines tailored to your component geometry, production rate, and surface finish standards. Our in-house design, manufacturing, and service capabilities ensure that every Rotary Indexing Type Shot Blasting Machine is custom-engineered for efficiency, uptime, and accuracy. Whether you need a fully automated robotic line or a semi-automatic standalone unit, we provide reliable solutions backed by robust after-sales support.

Customization and Technical Support

We recognize that each production facility has unique operational needs and workpiece specifications. That’s why every Rotary Indexing Type Shot Blasting Machine we manufacture is available with a wide range of customization options and performance-enhancing add-ons, including:

Custom Number of Indexing Stations: Available from 2 to 12 stations or more, based on your required throughput and part complexity.
Gun Hybrid Configuration: High-performance air-operated guns depending on the media type, surface finish, and application.
Tailor-Made Fixtures & Jigs: Design and integration of customized satellite fixtures for holding parts with unusual geometry, fragile surfaces, or tight tolerances.
Servo-Controlled Indexing Mechanism: Ensures precise, programmable positioning with repeat accuracy for high-volume production environments.
Robotic Arm or Pick-and-Place Loader/Unloader: Enhances automation for high-speed lines or reduces human intervention in critical handling.
Nozzle/Gun Reciprocation System: Available in single-axis or dual-axis movement to ensure uniform blasting coverage for complex 3D profiles.
Advanced Dust Collection Systems: Cartridge-type or pleated filter systems with pulse-jet cleaning, sized as per machine load and local environmental norms.
Industry 4.0 Ready Controls: Integration of IoT-enabled monitoring, remote diagnostics, production analytics, and SCADA interfacing for smart factory environments.
Media Flow Monitoring & Shot Peening Control Systems: For critical applications such as aerospace or automotive peening, optional monitoring of shot flow, velocity, and cycle time ensures compliance with quality standards.

Advanced PLC-Controlled Operation
Fully programmable control panel allows users to set and monitor blasting parameters such as indexing speed, cycle time, and blast intensity for different parts.

Whether you’re working with high-precision aerospace components or rugged automotive castings, our machines can be built to match your production goals, space constraints, and technical requirements.
