TYRE MOULD CLEANING MACHINE

TYPE-MOULD CLEANING - ABRASIVE BLASTING MACHINE

The Abrasive Blasting Machine for Tyre Mould Cleaning is specifically engineered to restore tyre moulds by removing carbon deposits, rubber residues, and release agents that accumulate during production. This system uses a controlled abrasive blasting process to clean intricate grooves, sipes, and cavity details of both two-piece and segmental moulds—without altering critical dimensions or surface finish.

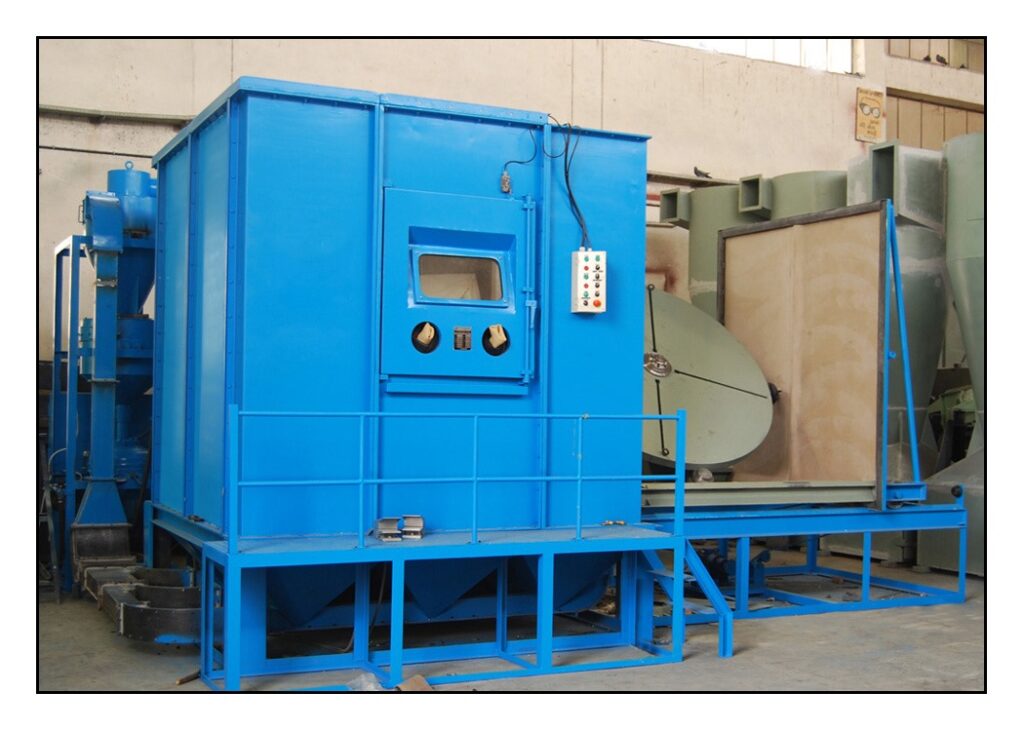

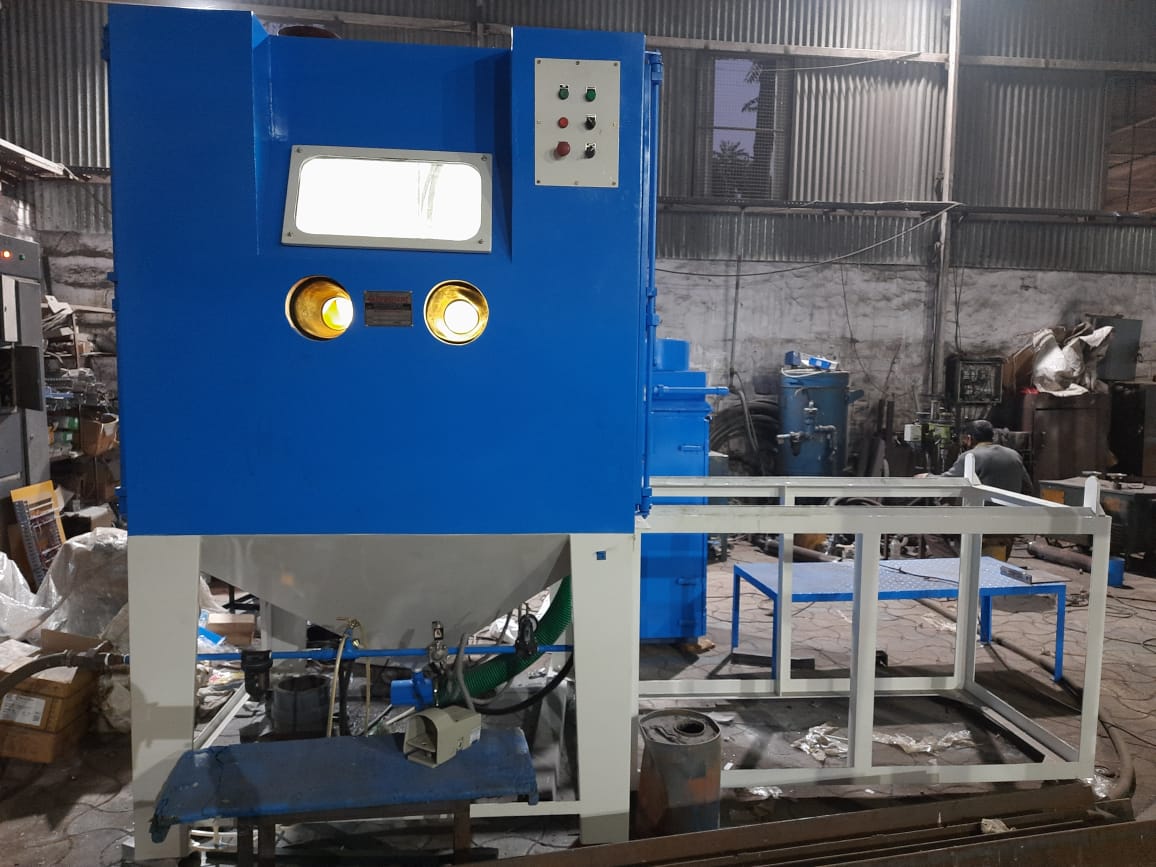

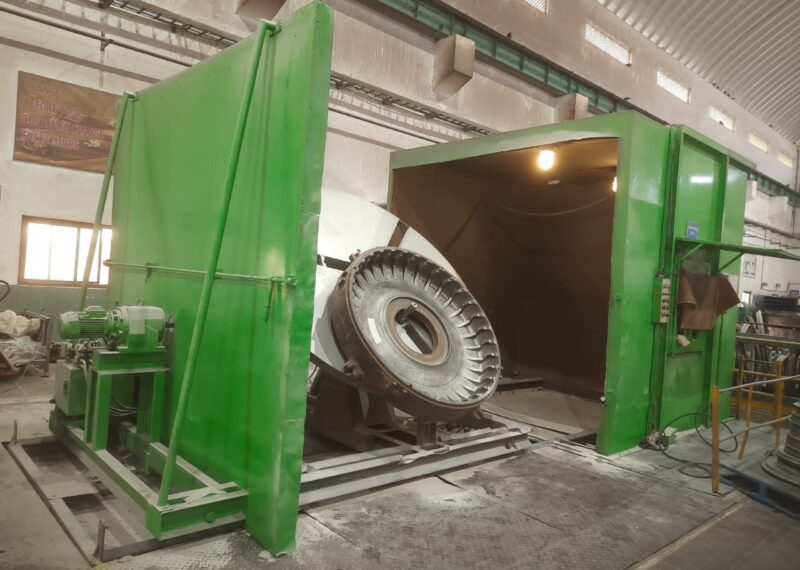

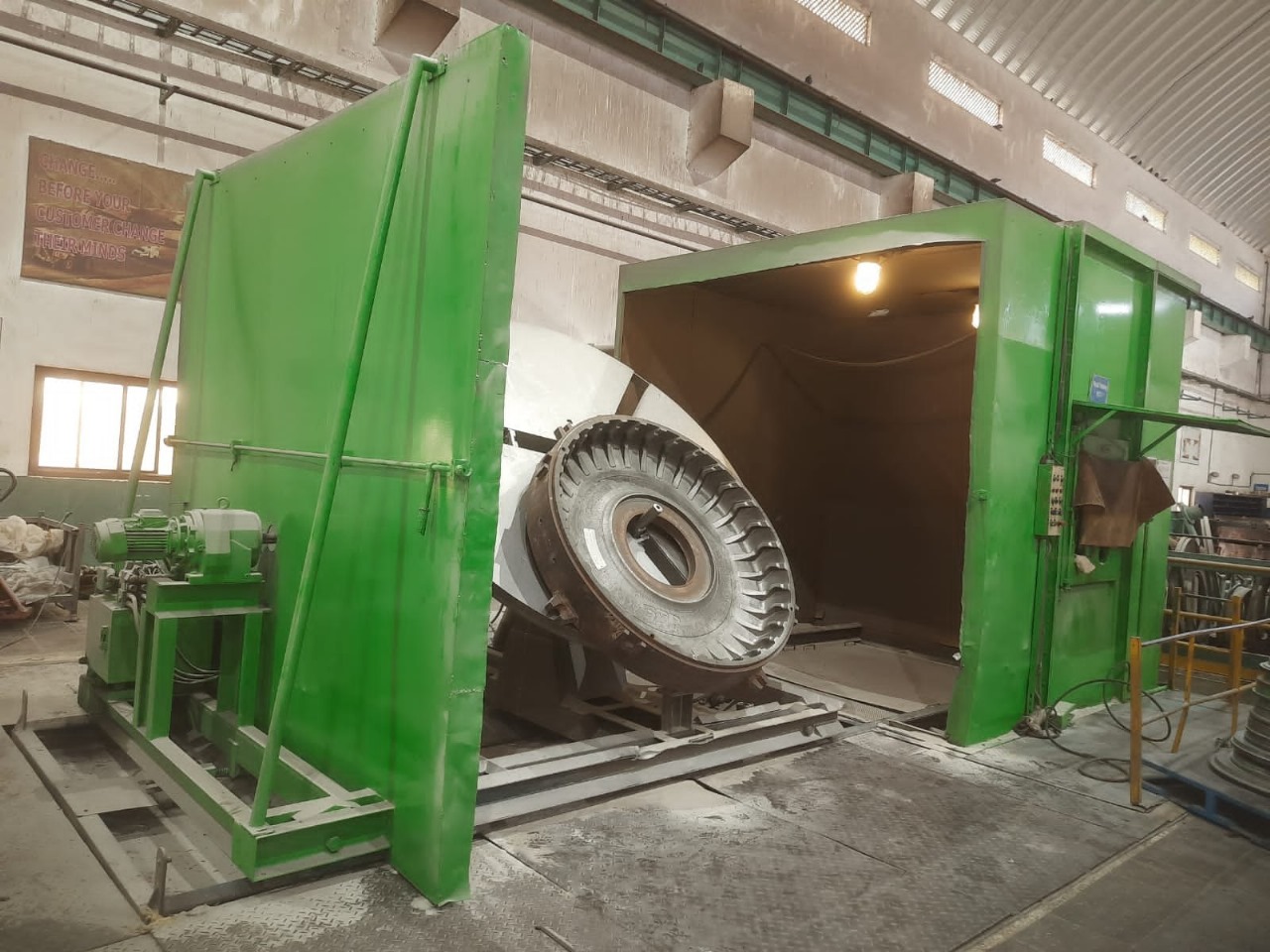

Equipped with options like a tilting turntable, motorized work car, or fixed loading platform, the machine provides safe and ergonomic handling of heavy moulds while delivering precision cleaning performance with minimal operator effort. It is an ideal solution for tyre manufacturers, retreaders, and mould maintenance workshops focused on maintaining mould integrity and extending service life.

Key Features

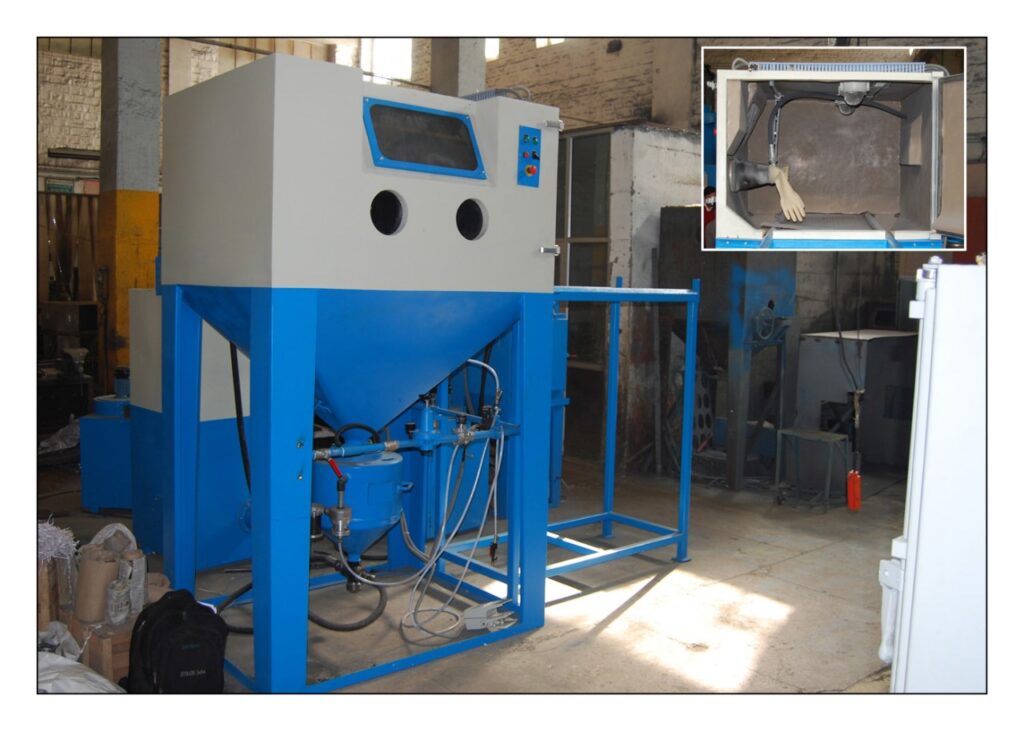

  • Heavy-Duty Blast Cabinet: Built with reinforced steel and lined with wear-resistant rubber or manganese plates to withstand continuous abrasive impact.
  • Suction or Pressure-Based Blast System: Offered with suction-based guns for gentle cleaning or pressure-based blasting for faster, more aggressive removal of stubborn residues.

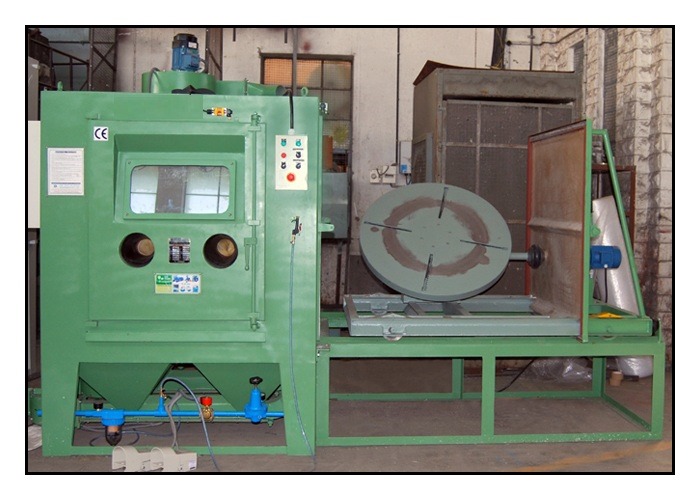

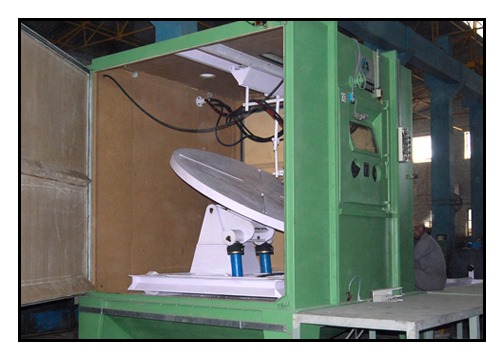

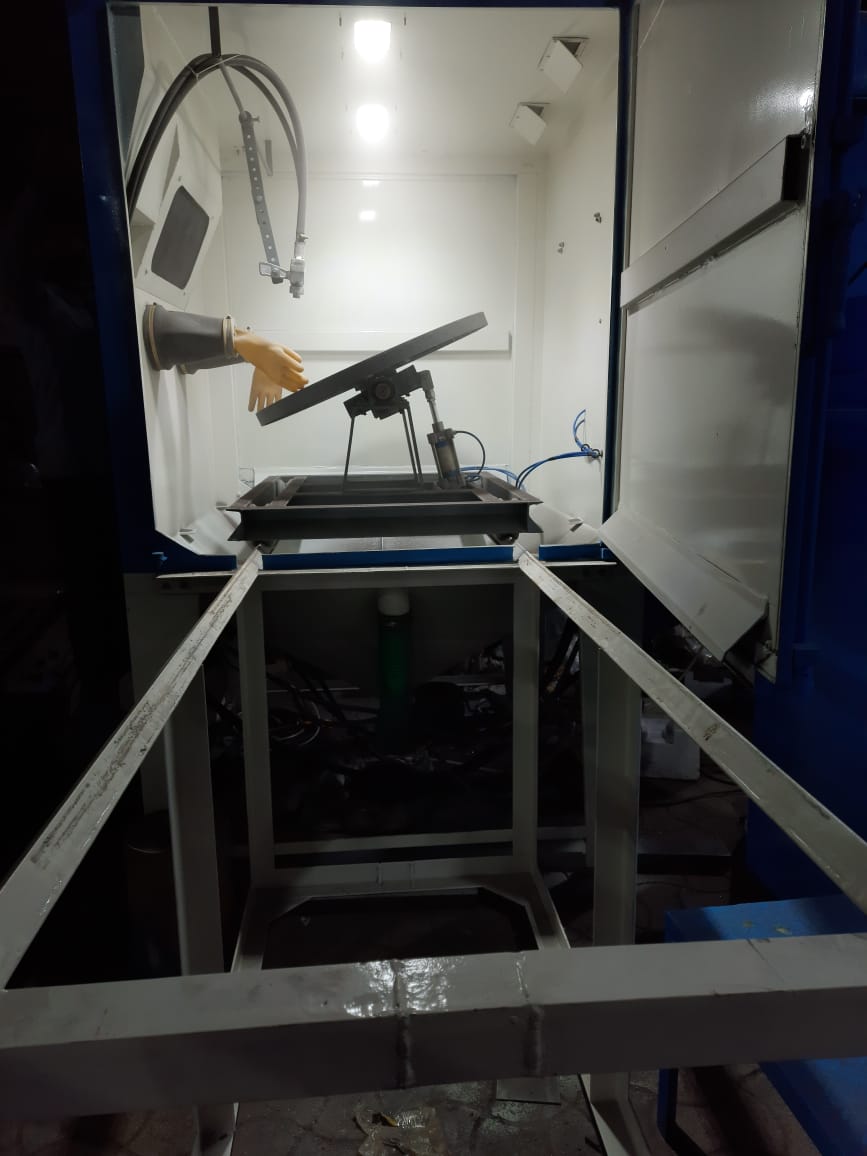

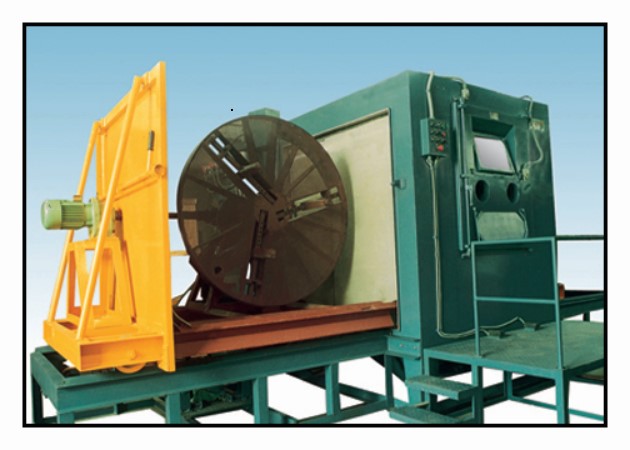

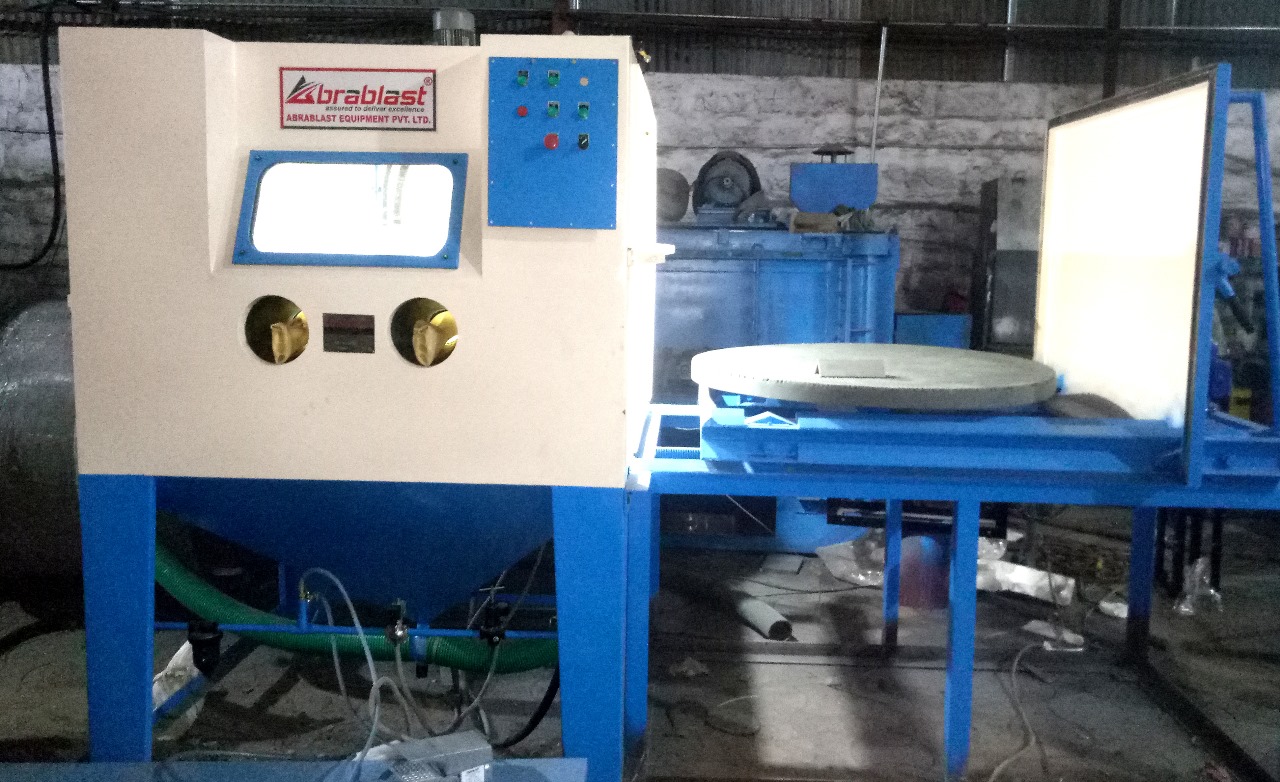

  • Turntable Options for Mould Handling: Available with manual, pneumatic, or hydraulic tilting turntables to rotate or angle the moulds during blasting—ensuring comprehensive coverage of all internal and external profiles.

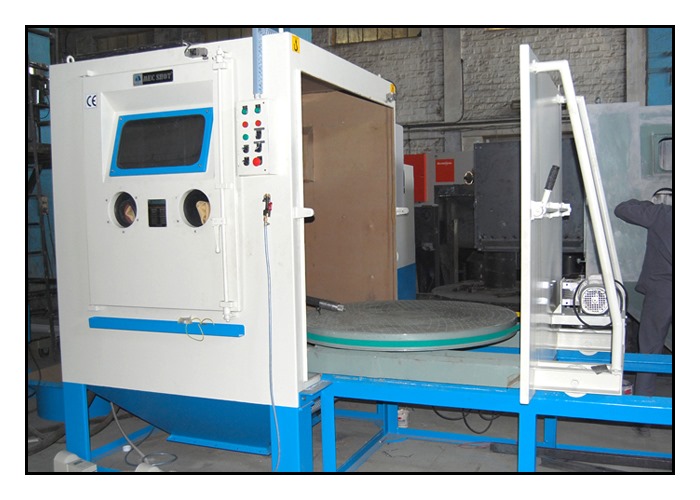

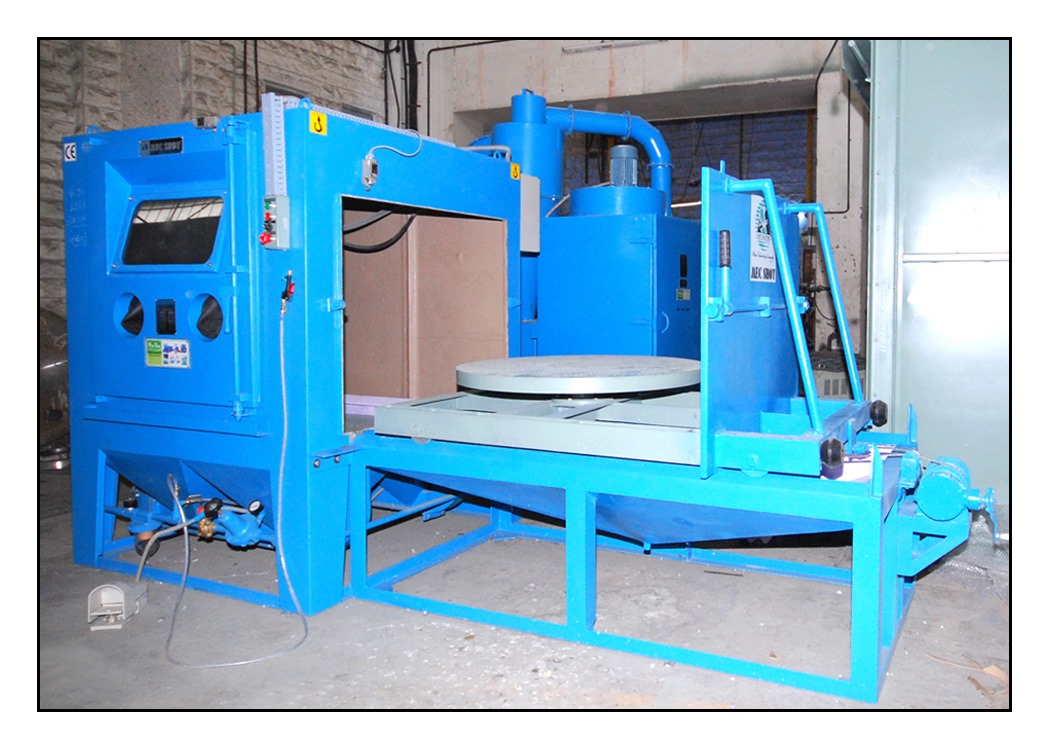

  • Motorized or Manual Work Car Integration: Enables easy loading/unloading of heavy moulds with precision positioning inside the blast cabinet, improving operator safety and reducing handling time.

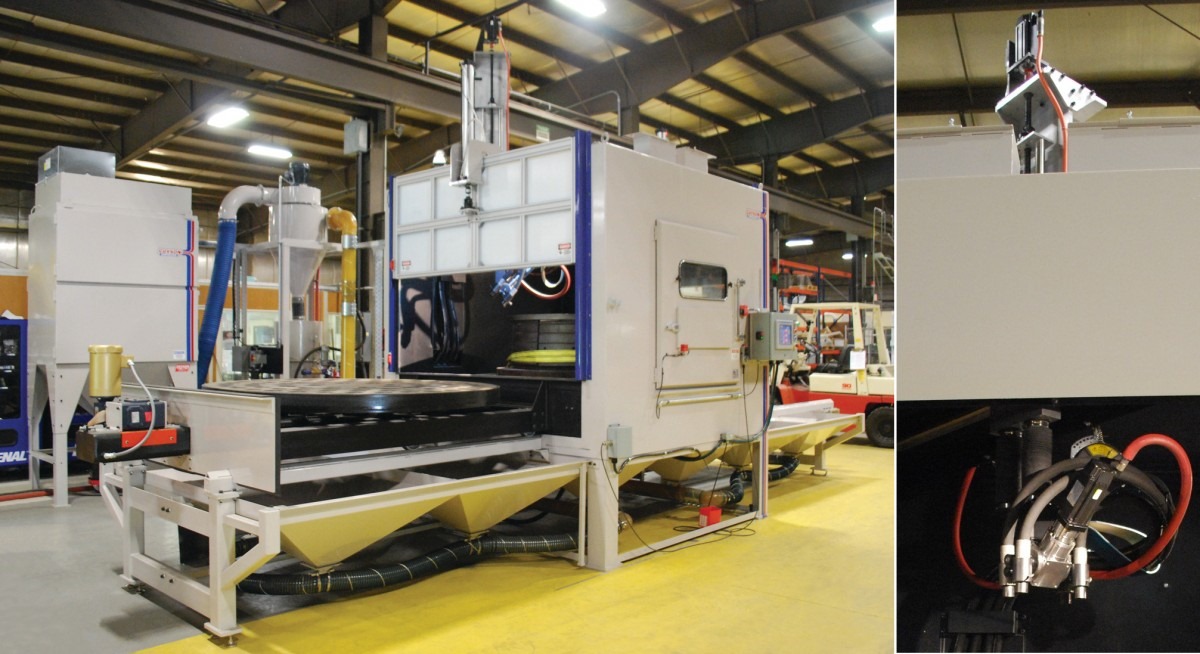

  • Nozzle Reciprocation System: Optional reciprocating nozzle assembly ensures uniform blasting of deep or complex tread patterns by maintaining a consistent blast distance and angle.

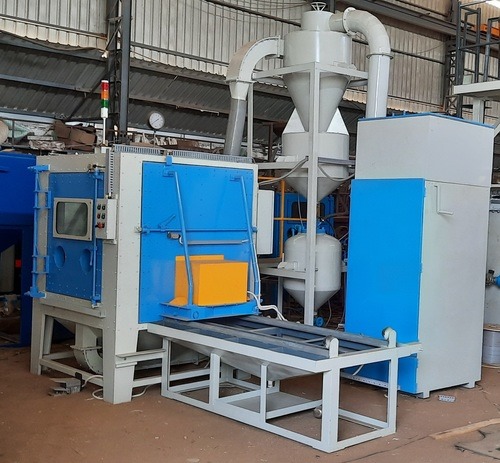

  • Efficient Dust Extraction and Media Recovery: Integrated dust collector and media reclaimer ensure clean operation, reduce abrasive consumption, and maintain optimal blasting visibility.
  • Inspection Window and Internal Lighting: Allows real-time monitoring of the blasting process without interrupting the operation.

Finishing Process and Applications:

The operator places the tyre mould onto the turntable or work car. If equipped, the turntable tilts hydraulically or pneumatically to allow better access to complex surfaces. Once inside the blast cabinet, the door is closed, and the selected blast system (suction or pressure) is activated. The abrasive media—such as glass beads or aluminum oxide—is propelled onto the mould surface, removing built-up rubber and carbon without damaging mould geometry. Spent media and dust are captured, cleaned, and recycled for reuse. The cleaned mould is then rotated or returned via the work car for unloading.
  • OEM Tyre Plants: For routine cleaning and maintenance of moulds used in the production of PCR, TBR, and OTR tyres.
  • Tyre Retreading Units: For preparing older moulds for reuse in remanufactured or re-grooved tyres.
  • Tool & Die Maintenance Shops: Supporting mould refurbishment and surface finishing operations.
  • Rubber Processing Facilities: Where accurate cleaning of complex cavity dies and patterns is critical.

Benefits

  • Restores Mould Surface Without Damage: Removes deposits without altering the fine details or tolerances of the mould.
  • Improved Tyre Quality and Mould Life: Clean moulds lead to sharper tread impressions, better surface release, and extended mould usage.
  • Ergonomic and Safe Mould Handling: Tilting turntables and work cars reduce manual lifting, lower injury risk, and simplify mould positioning.
  • Highly Repeatable Cleaning Process: Ensures consistent cleaning quality across all moulds and batches, reducing operator dependency.
  • Low Media Consumption and Cleaner Operation: Closed-loop abrasive system minimizes wastage and keeps the blasting zone dust-free.
  • Reduced Downtime and Maintenance Cost: Efficient cleaning helps shorten mould changeover cycles and lowers long-term mould maintenance expenses.

Why Choose Our Cabinet Type Abrasive Blasting Machine

  • At Abrablast, we combine deep industry knowledge with precision manufacturing to create blasting machines that meet the specific challenges of tyre mould cleaning. Our systems are trusted by leading tyre manufacturers for their durability, reliability, and process control. With options tailored to your mould types, plant layout, and cleaning frequency, we deliver machines that optimize performance while ensuring operator safety, long-term usability, and reduced operational costs.

    We also back every installation with comprehensive service, training, and after-sales support, helping you keep your maintenance routines efficient and predictable.

Customization and Technical Support

We offer a wide range of engineering options to ensure the machine suits your exact mould handling and cleaning needs:

  • Manual, Pneumatic, or Hydraulic Tilting Turntables
    Choose based on mould size and required operator control—manual for simplicity, pneumatic for quick tilts, or hydraulic for heavy-duty positioning.
  • Fixed or Motorized Work Cars
    Designed to carry heavy tyre moulds into the blast chamber with minimal physical effort, ensuring alignment accuracy and safety.
  • Suction or Pressure Blasting Configuration
    Based on contamination level and surface sensitivity—suction for light-duty cleaning, pressure for faster material removal.
  • Custom Blast Gun Arrangement
    Single, dual, or multi-gun setups tailored to mould shape and cavity depth.
  • Nozzle Reciprocation System
    For uniform, programmable blast coverage—ideal for deep-groove tread designs.
  • Integrated Dust Collector & Media Reclaimer
    Offered in pleated filter or cartridge-type systems, with pulse-jet cleaning for low-maintenance dust control.
  • Abrasive Compatibility Options
    Configurable for glass beads, aluminum oxide, plastic media, or steel grit depending on surface requirements.
  • PLC Control with HMI Interface
    Enables recipe-based operation, real-time monitoring, and process control for repeatable cleaning cycles.
  • Remote Technical Support and AMC
    We offer remote diagnostics, training, and structured Annual Maintenance Contracts to ensure peak machine performance and uninterrupted operations.
