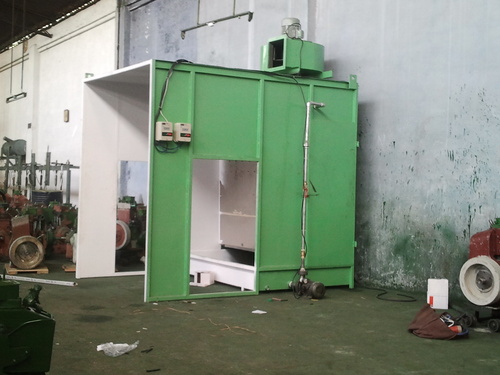

WATER-WASH CURTAIN TYPE PAINT SPRAY BOOTH

WATER-WASH CURTAIN TYPE PAINT SPRAY BOOTH SYSTEM

The Water-Wash Type Paint Spray Booth System is a highly efficient solution designed for clean, controlled, and environmentally safe paint application. This system uses a continuous water curtain to capture paint overspray and airborne particulates, ensuring superior air filtration and a dust-free environment. Engineered for consistent performance, operator safety, and regulatory compliance, it is ideal for high-volume industrial painting processes. These systems are extensively used across industries such as automotive, metal finishing, furniture, aerospace, and industrial equipment manufacturing, where high-quality surface finishing is critical.

Key Features:

  • Water Curtain Filtration System: A dynamic water wall captures overspray and paint particles, preventing airborne contamination and maintaining a clean working environment.
  • Powerful Exhaust Fan: High-capacity exhaust fans ensure steady airflow and effective removal of paint fumes, maintaining proper booth ventilation and operator safety.
  • Efficient Sludge Collection: Paint particles are trapped and filtered through water and sludge separators, minimizing maintenance and enabling longer operational hours.
  • Spacious and Modular Design: The booth is designed to handle small to large components with ease. Modular panels allow customization in size and layout to suit specific workshop requirements.
  • User-Friendly Control System: Integrated controls manage fan speed, water circulation, and lighting, enhancing user convenience and process stability.
  • Corrosion-Resistant Construction: Made using galvanized, powder-coated, or stainless steel sheets to ensure durability and resistance to water and chemical exposure.

Finishing Process and Applications:

The Water-Wash Type Paint Spray Booth operates on a water-curtain filtration principle. During the painting process, overspray and airborne particulates are drawn into the booth through a strong airflow created by the exhaust fan. As the air passes through the rear or lower wall of the booth, it encounters a continuously flowing sheet of water that captures and washes down the paint particles. The contaminated water is then directed into a collection tank where paint sludge is separated through settling or mechanical filtration systems. The cleaned water is recirculated back into the curtain system via pumps, maintaining a consistent flow. This closed-loop water curtain not only traps pollutants but also reduces the risk of clogging, ensuring uninterrupted operation and a clean, dust-free working environment.
  • Automotive Painting: Perfect for automotive shops, the system provides a controlled environment for painting vehicles and parts, ensuring a flawless finish.
  • Aerospace Components: Suitable for the painting and finishing of aerospace components that require precision and high-quality surface treatments.
  • Furniture Finishing: Ideal for woodworking shops looking to apply finishes to furniture and cabinetry in a clean environment.
  • Industrial Equipment: Used for painting industrial machinery and equipment, ensuring consistent and high-quality results.

Benefits

  • Cleaner Air Quality – Wet filtration traps paint particles and solvents effectively, improving work zone safety
  • Minimal Overspray Escape – Water curtain reduces airborne particles, ensuring better finish and environmental compliance
  • Cost-Effective Operation – Reduced paint waste, lower maintenance of dry filters, and longer operational cycles
  • Environmentally Friendly – Compliant with air pollution control norms by minimizing solvent emissions

Why Choose Our Water-Wash Paint Booth Systems?

  1. Proven Industrial Engineering: Our systems are built using deep industry knowledge and decades of hands-on experience in paint application, surface finishing, and cleanroom engineering. Every booth is designed for optimal functionality, safety, and durability.
  2. Customization Expertise: From job handling methods and airflow dynamics to booth dimensions and pollution control integrations, we offer fully customizable solutions to meet the exact needs of your operations—ensuring a perfect fit for your production workflow.
  3. Superior Filtration Performance: Our water-curtain systems are engineered for maximum overspray capture with minimum water usage, reducing emissions and ensuring compliance with CPCB/SPCB air pollution norms.
  4. Operational Reliability: With corrosion-resistant materials, low-maintenance filtration systems, and robust mechanical design, our booths are built to last in demanding industrial environments.
  5. Turnkey Support: We provide complete lifecycle support—from design consultation and installation to training, maintenance, and spare parts availability. Our team ensures that your booth continues to perform efficiently with minimal downtime.
  6. Safety & Compliance First: Our booths are designed in accordance with the latest fire safety, ventilation, and emission standards. Optional flameproof components, mist eliminators, and chemical dosing systems are available to meet your safety requirements.

Customization & Technical Options

Our Water-Wash Paint Booth Systems can be configured to meet your exact needs—from workflow requirements to regulatory standards. We offer extensive customization in material handling, structural layout, exhaust management, and control systems.

Custom Job Handling Systems

  • Manual push trolleys or track-mounted systems

  • Overhead monorail or I-beam job movement

  • Hydraulic or pneumatic lifting tables for ergonomic loading/unloading

  • Motorized conveyors for high-throughput processes

Door Configuration Options

  • Single or double-leaf hinged doors

  • Sliding door systems for space efficiency

  • Vertical lift or rolling shutter doors for large jobs and equipment access

Chimney & Pollution Control Enhancements

  • Extended chimney height with custom ducting

  • Water treatment and recycling units for minimal water discharge

  • Mist eliminators to capture fine droplets

  • Chemical dosing systems to control pH and odor

  • Compliant with CPCB/SPCB pollution control regulations

Structural and Electrical Customization

  • Choice of GI, powder-coated, or SS material construction

  • LED lighting layouts for maximum visibility

  • View panels for inspection without entering booth

Technical Support & After-Sales Service

We provide comprehensive support throughout the lifecycle of your system:

  • Complete installation & commissioning by trained engineers
  • Operator training & safety orientation
  • Annual Maintenance Contracts (AMC) and preventive care schedules
  • Spare parts availability with fast dispatch
  • Remote or on-site troubleshooting assistance
  • Custom retrofit solutions for existing systems
